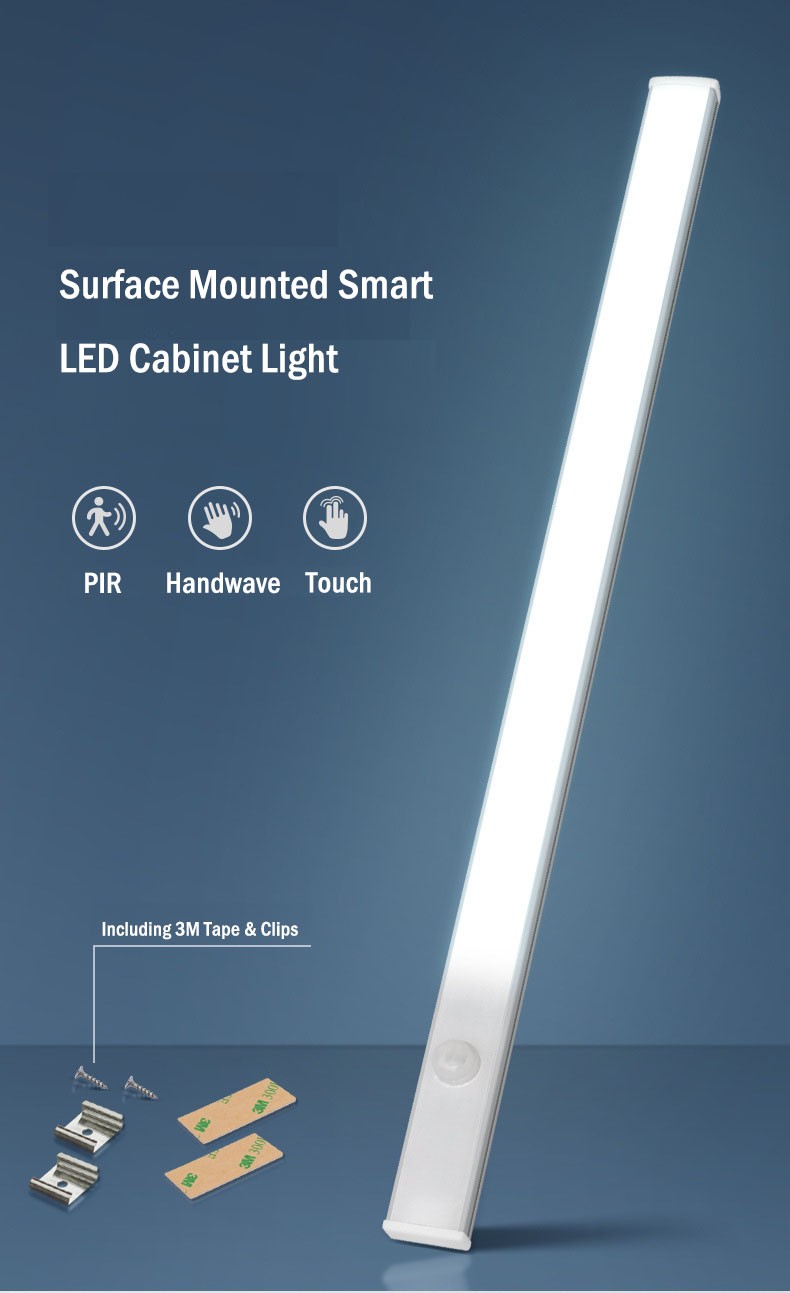

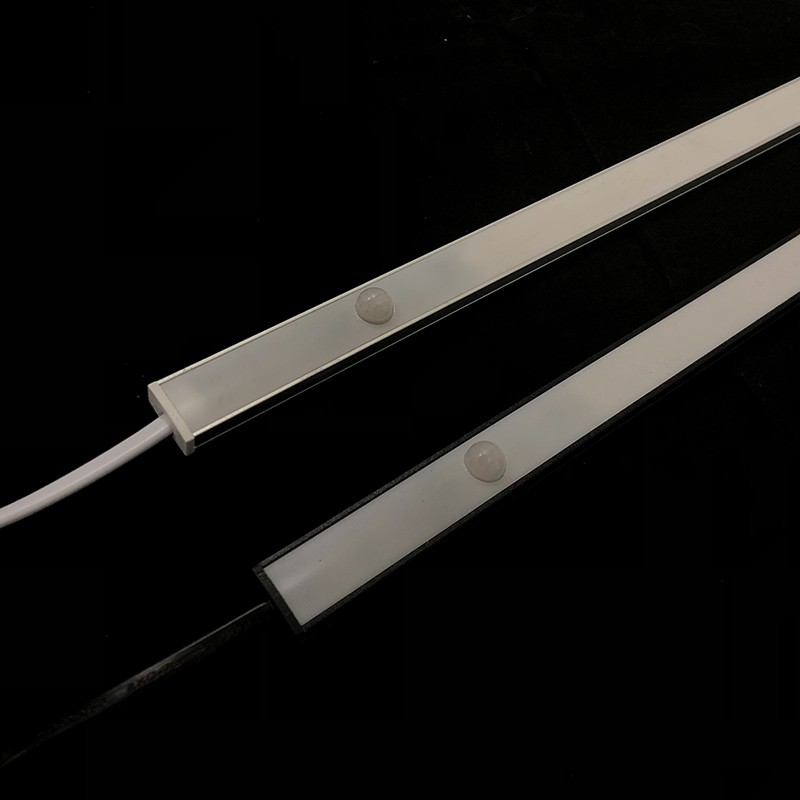

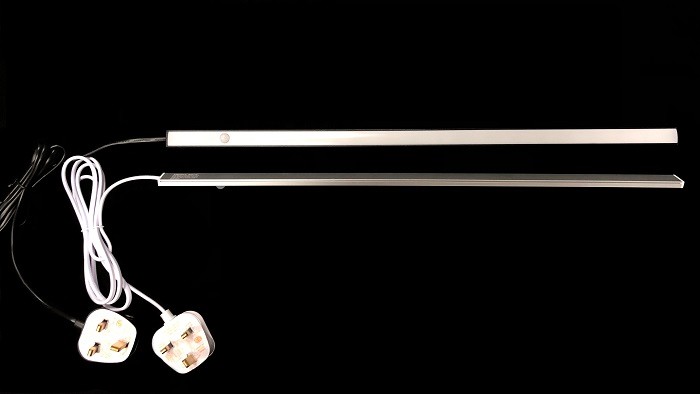

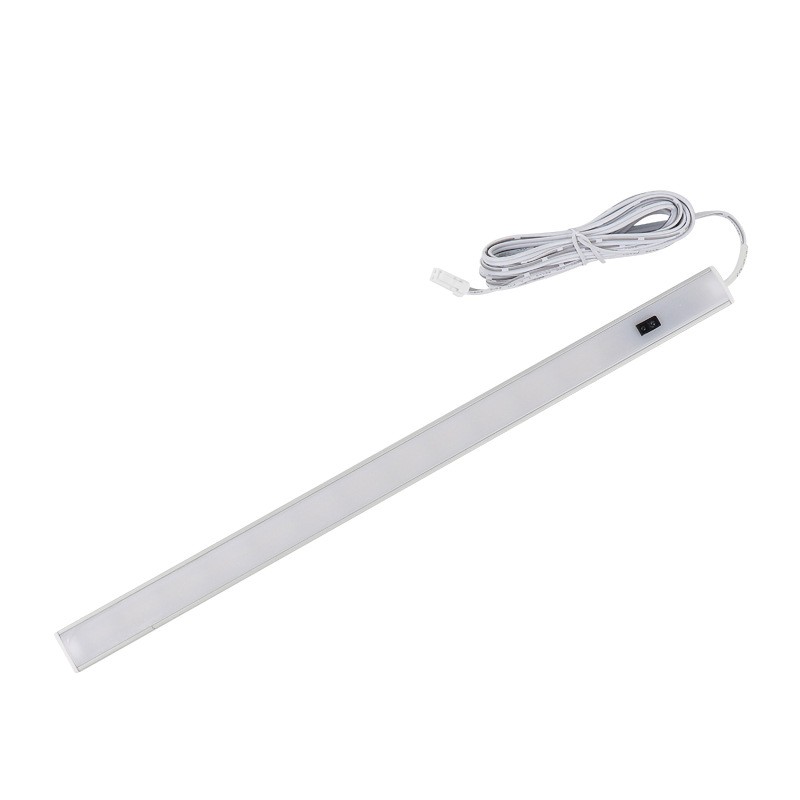

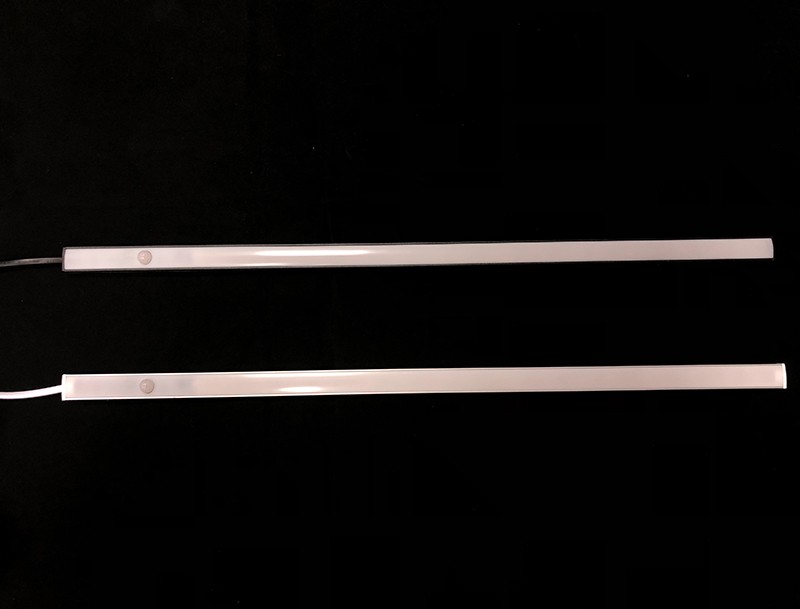

500mm 8W Smart Slim Surface Mount Intelligent Under Cabinet Rigid LED Strip Light with Built-in Infrared Sensor

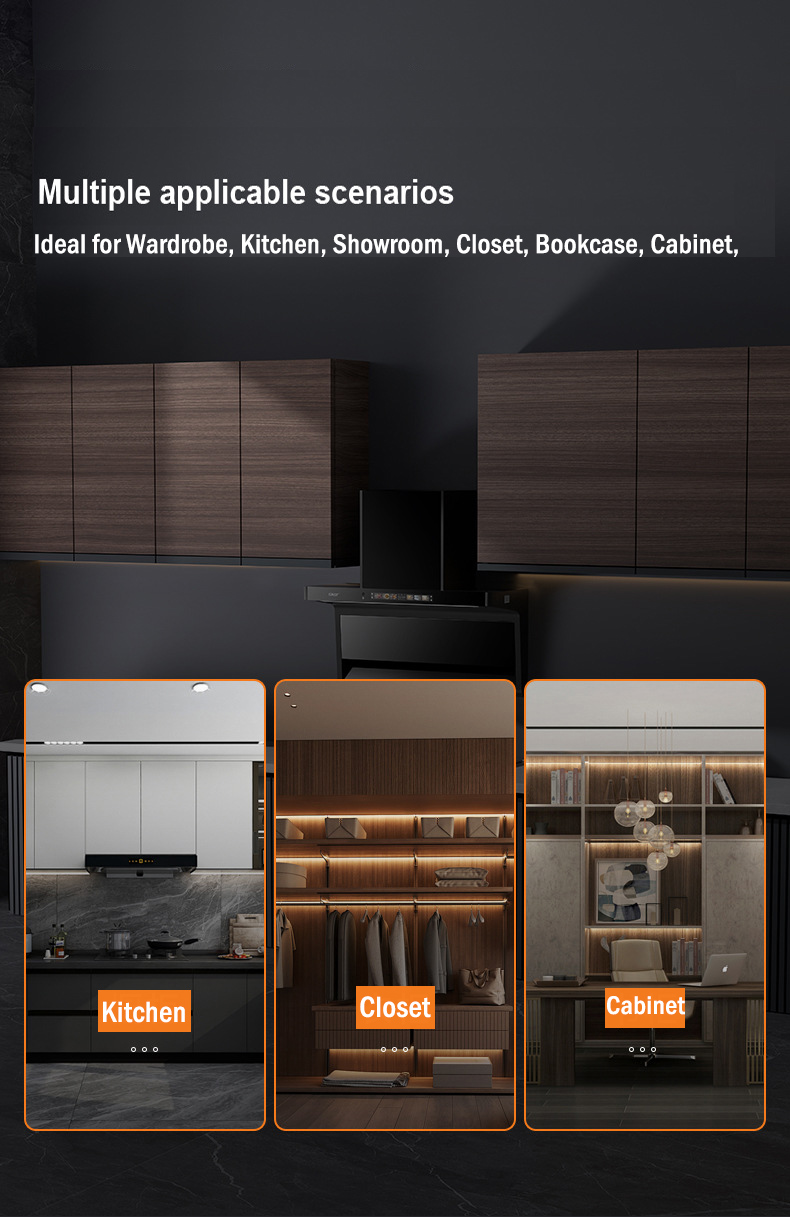

This 500mm 8W Smart Slim Surface-Mounted LED Cabinet Light combines modern design with intelligent functionality. Equipped with a built-in infrared motion sensor, it automatically turns on when you approach and off when you leave, delivering effortless lighting for cabinets, wardrobes, and display areas. Its slim profile and easy surface installation make it an ideal choice for both new projects and retrofits.

500mm 8W Smart Slim Surface Mount Intelligent Under Cabinet Rigid LED Strip Light with Built-in Infrared Sensor

This 500mm 8W Smart Slim Surface-Mounted LED Cabinet Light combines modern design with intelligent functionality. Equipped with a built-in infrared motion sensor, it automatically turns on when you approach and off when you leave, delivering effortless lighting for cabinets, wardrobes, and display areas. Its slim profile and easy surface installation make it an ideal choice for both new projects and retrofits.



Product Key Features:

  • Surface-Mounted Design – No need for slotting or recessed installation

  • Built-in Infrared Sensor – Auto ON/OFF with body movement detection

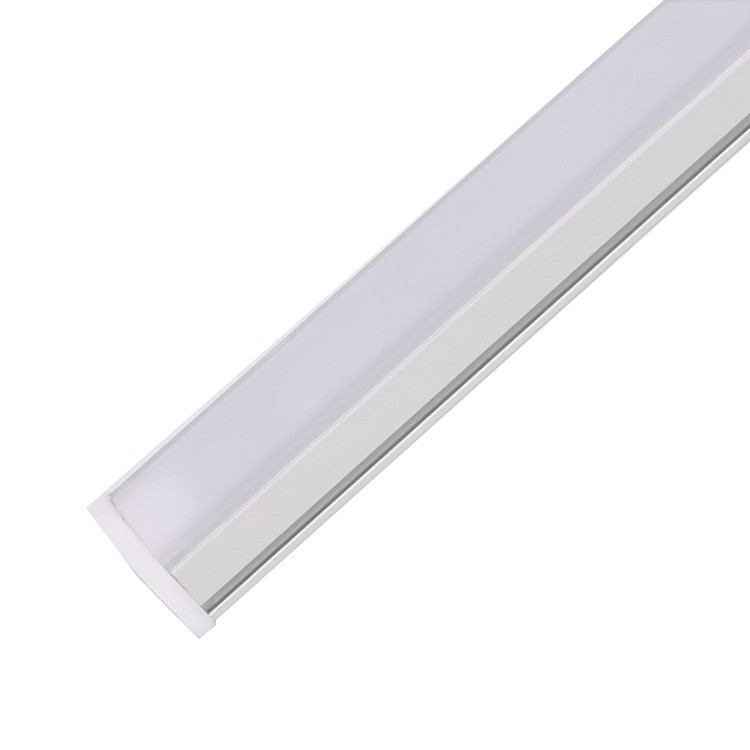

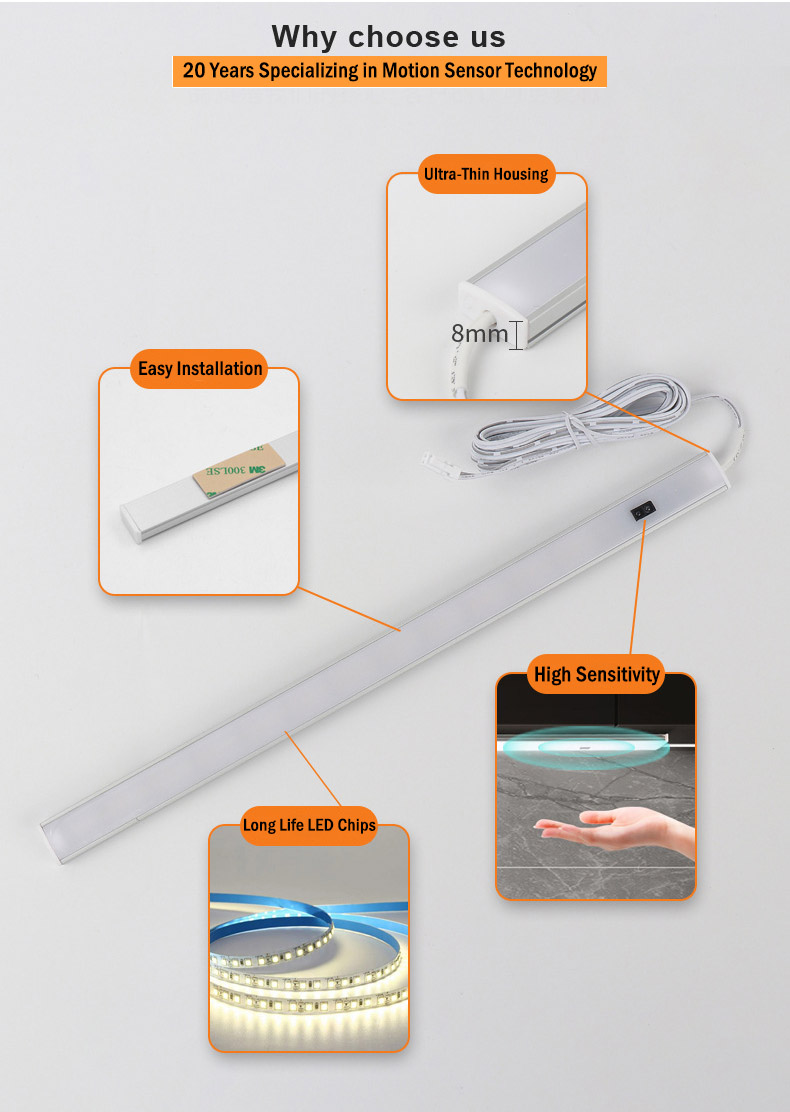

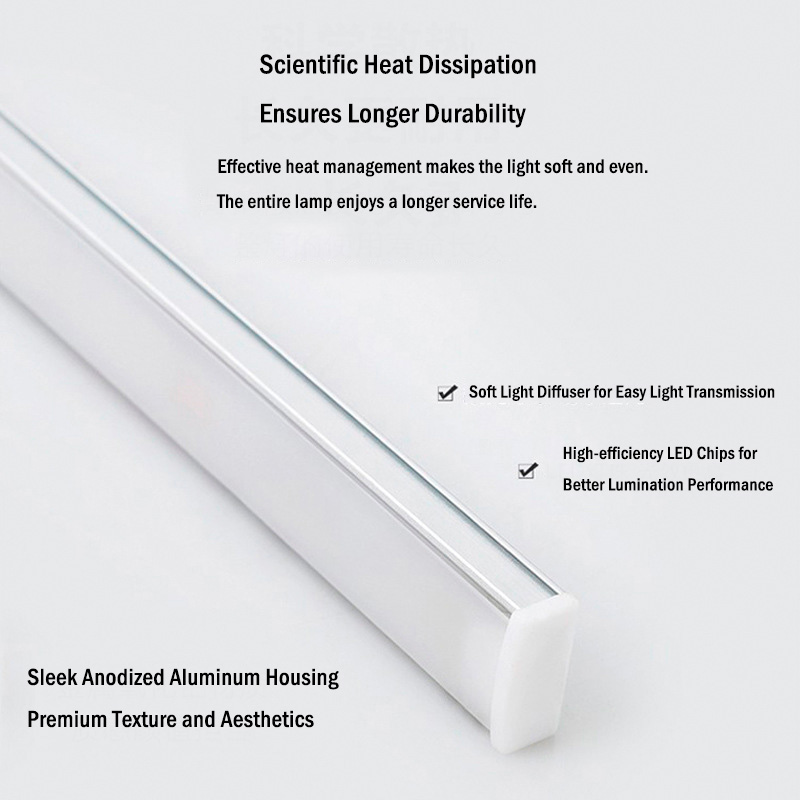

  • Slim and Rigid – Ultra-thin aluminum housing, space-saving design

  • Uniform Light Output – Bright, shadow-free illumination

  • Easy Installation – Comes with 3M adhesive or mounting clips

  • Energy Efficient – Only 8W power consumption with high lumen output

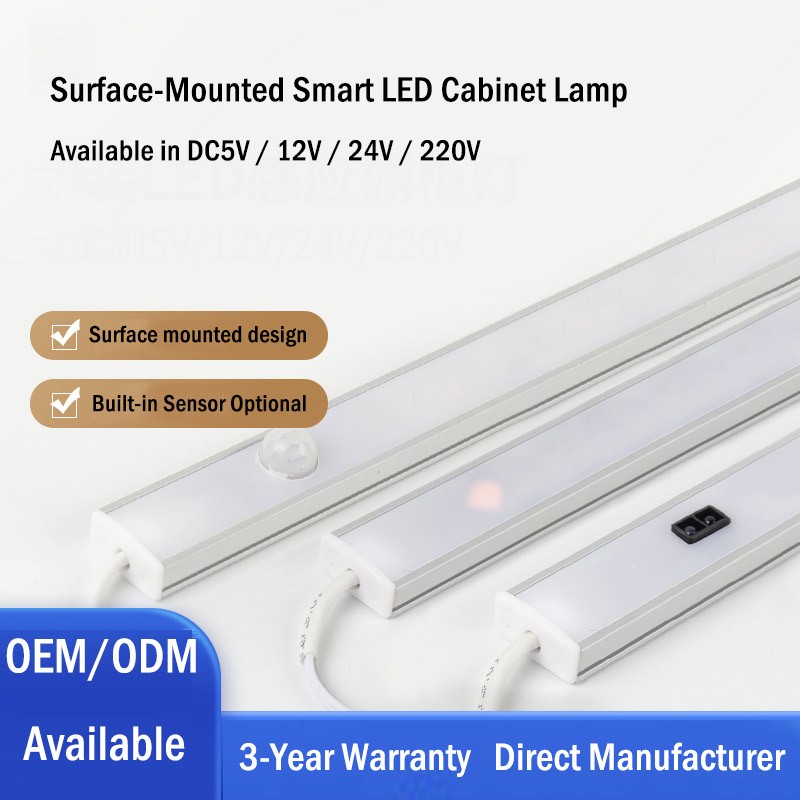

  • Multiple Voltage Options – Customizable for DC 5V / 12V / 24V / AC 220V

  • OEM/ODM Available – Custom length, CCT, and sensor types supported

  • 3-Year Warranty – Long lifespan with factory-direct quality assurance

Data sheet for PIR Motion Sensor Cabinet Lamp for Wardrobe

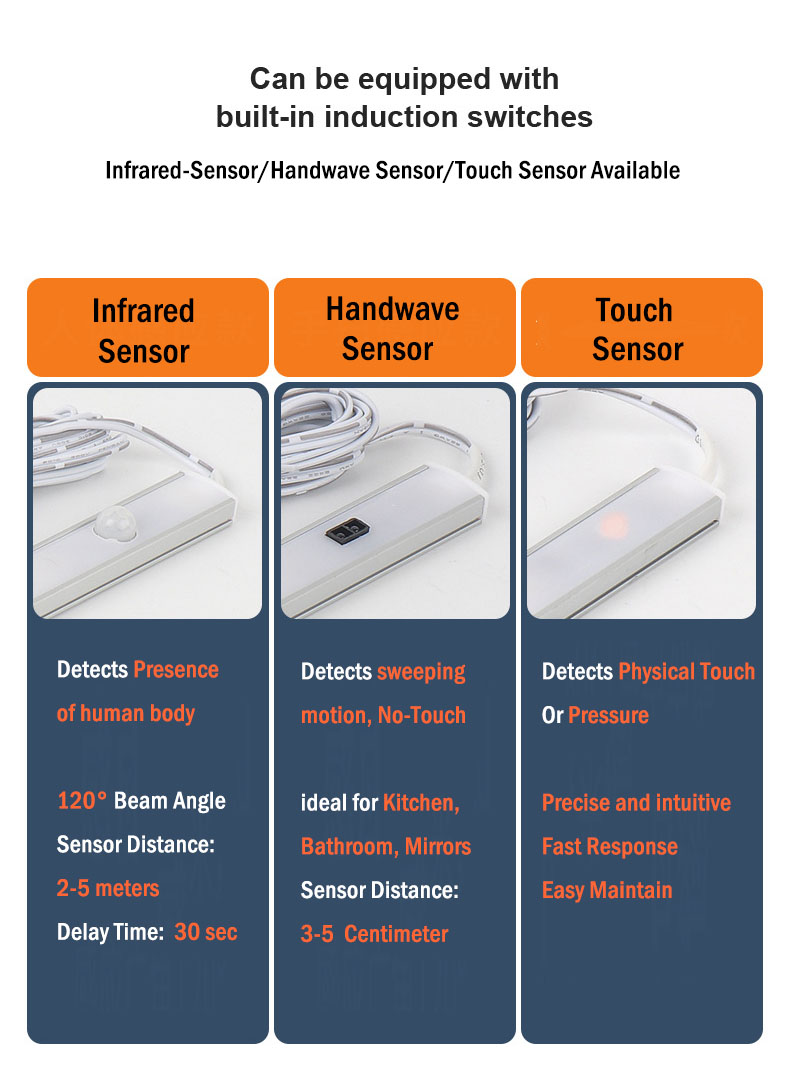

Length to be customized. PIR/Touch/Handwave Sensor Available

Item NoAM-M1808
VoltageDC5V / DC12V / DC24V / AC220V
Housing Size17.5*7mm
Mounting
Surface Mount
IP RatingIP20
LED Qty/M120pcs*SMD2835

Output Lumen

1200lm/M

CCT3000K /4000K/ 6000K

Rated Power

12W/m

Beam Angle120 degree
CRIRa 80
Body FinishWhite/Black
Lamp life35000 hours

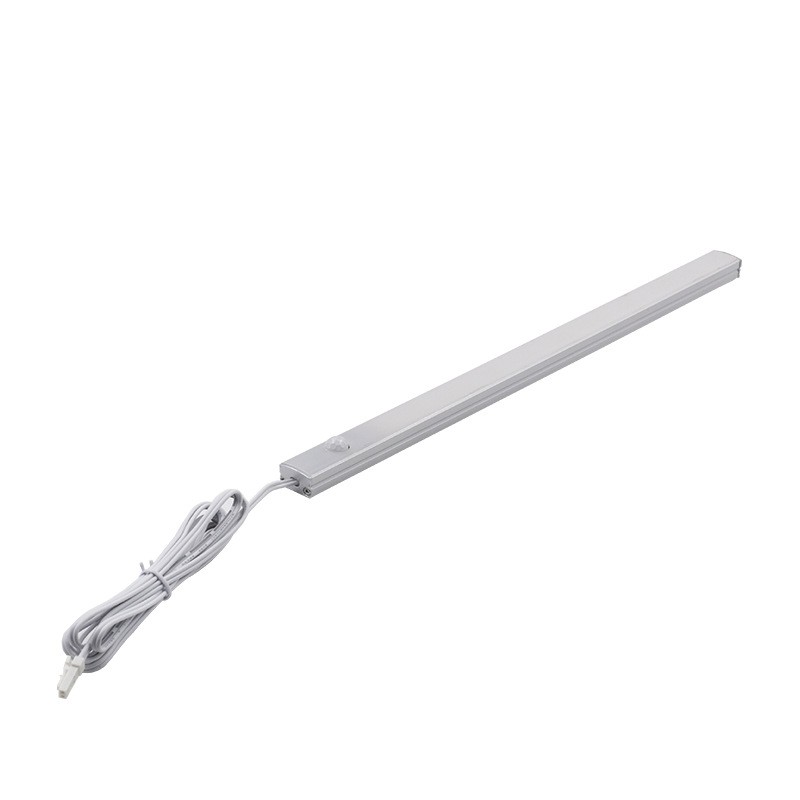

ConnectionHardwired tail 2m length white
MaterialAluminum & PC
Installation
Clips Mount / 3M Tap Sticker Mount

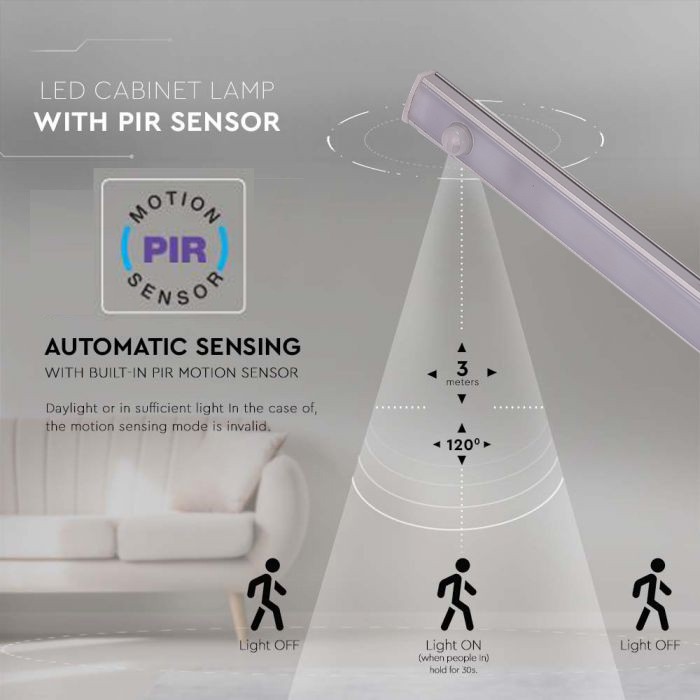

Sensor Data
Sensor principlePIR Sensor
Daylight Sensor

< 15 LUX

Transmission power<0.2mW
Detection range2-5m
Delay Time30 sec

Sensor mode

Full to Off (100%-off)

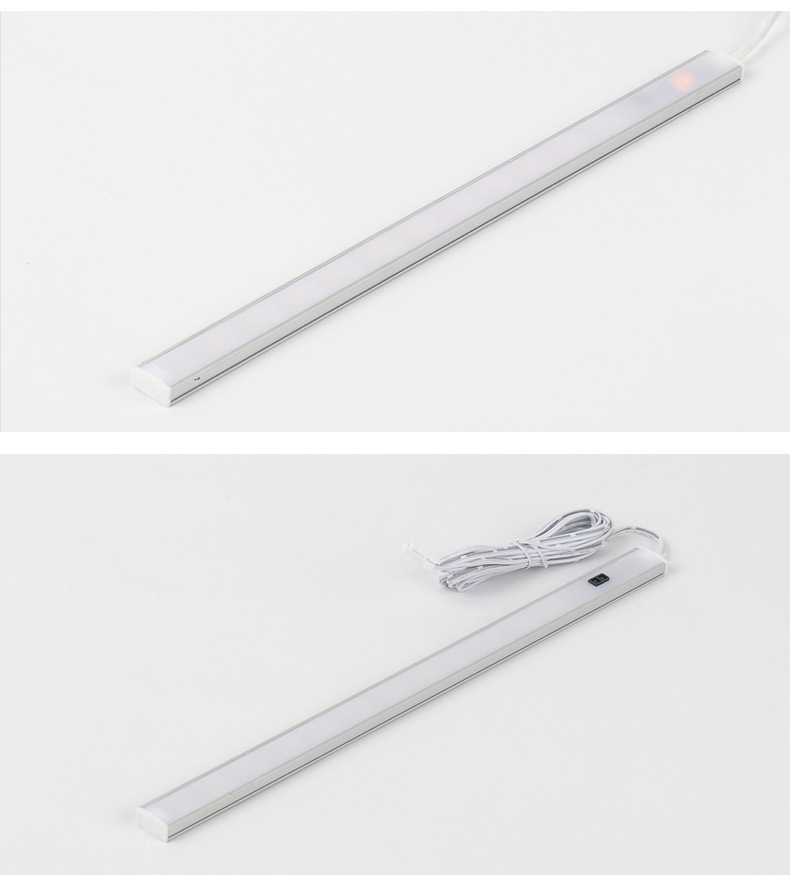

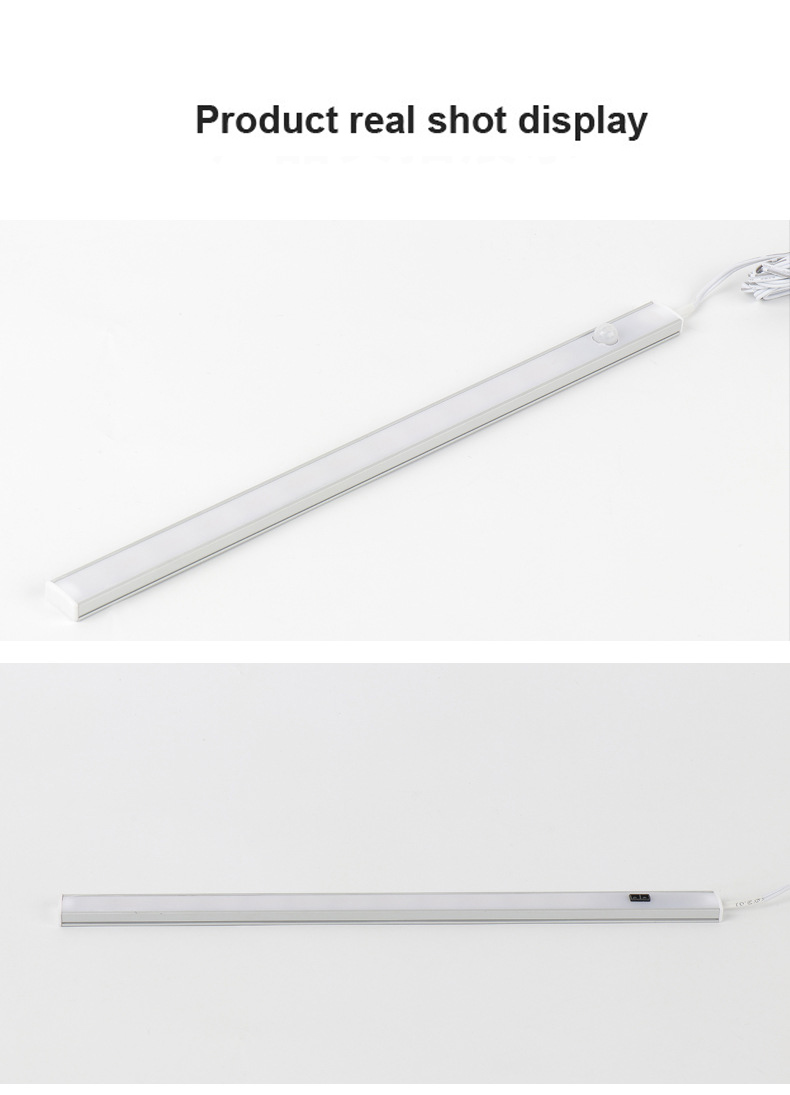

1754298485921884.jpg1754298491302065.jpg1754298502351431.jpg1754298468485472.jpg1754123759698579.jpg








Customer Questions & Answers

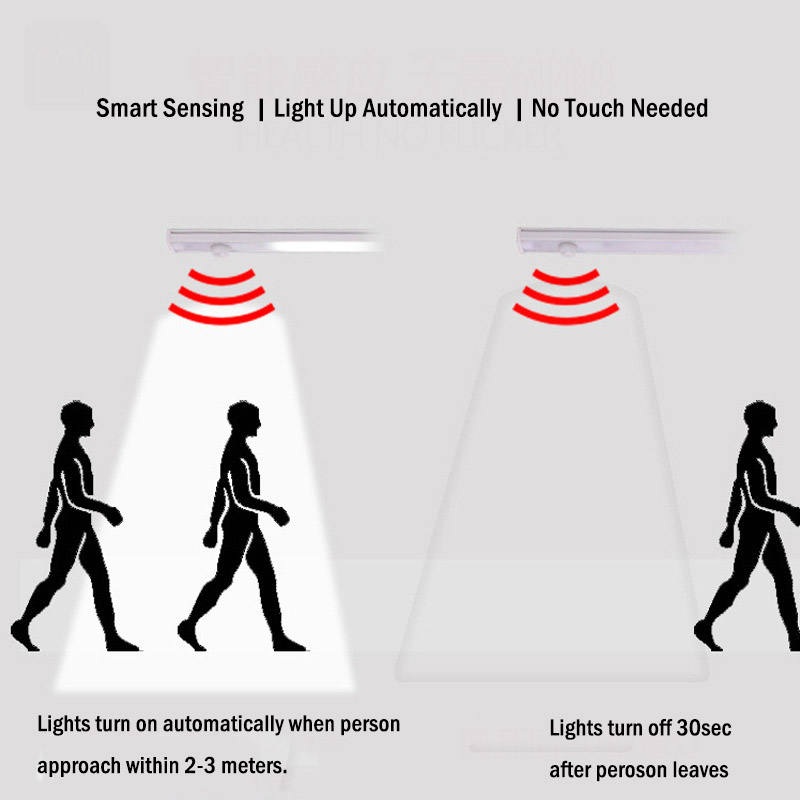

  • Sensor type :   ON/OFF Mode (100%-0%)

          When detect human presence (humen temperature), Light turns on at 100% brightness,

          No movement, stand by status lights off (0%)

  • Delay time: 30 seconds

           Mean: After people left 30sec, the light turns off automatically

  • Quality control:

           We have three sensor test rooms, make sure each lamps passed stricly sensor function test and aging test  before shipping.

  • Warranty : 3 years
