his ultrathin LED cabinet light with a built-in PIR motion sensor offers a sleek and modern lighting solution for kitchen cabinets, wardrobes, closets, and other under-counter spaces. Available in 5V, 12V, 24V, or 220V options, it supports flexible installation without the need for slotting or drilling.
This ultrathin LED cabinet light with a built-in PIR motion sensor offers a sleek and modern lighting solution for kitchen cabinets, wardrobes, closets, and other under-counter spaces. Available in 5V, 12V, 24V, or 220V options, it supports flexible installation without the need for slotting or drilling. The 3000K warm white light creates a cozy ambiance, while the PIR sensor ensures automatic on/off functionality, enhancing convenience and energy efficiency. Ideal for homes, offices, and retail displays.
Product Key Features:
Built-in PIR Motion Sensor – Auto on/off detection for hands-free lighting
3000K Warm White Light – Creates a cozy and elegant environment

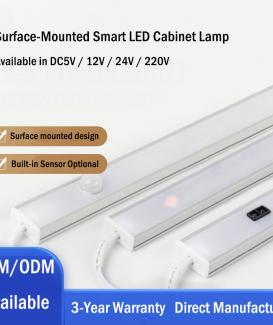

Voltage Options Available – 5V / 12V / 24V / 220V customizable

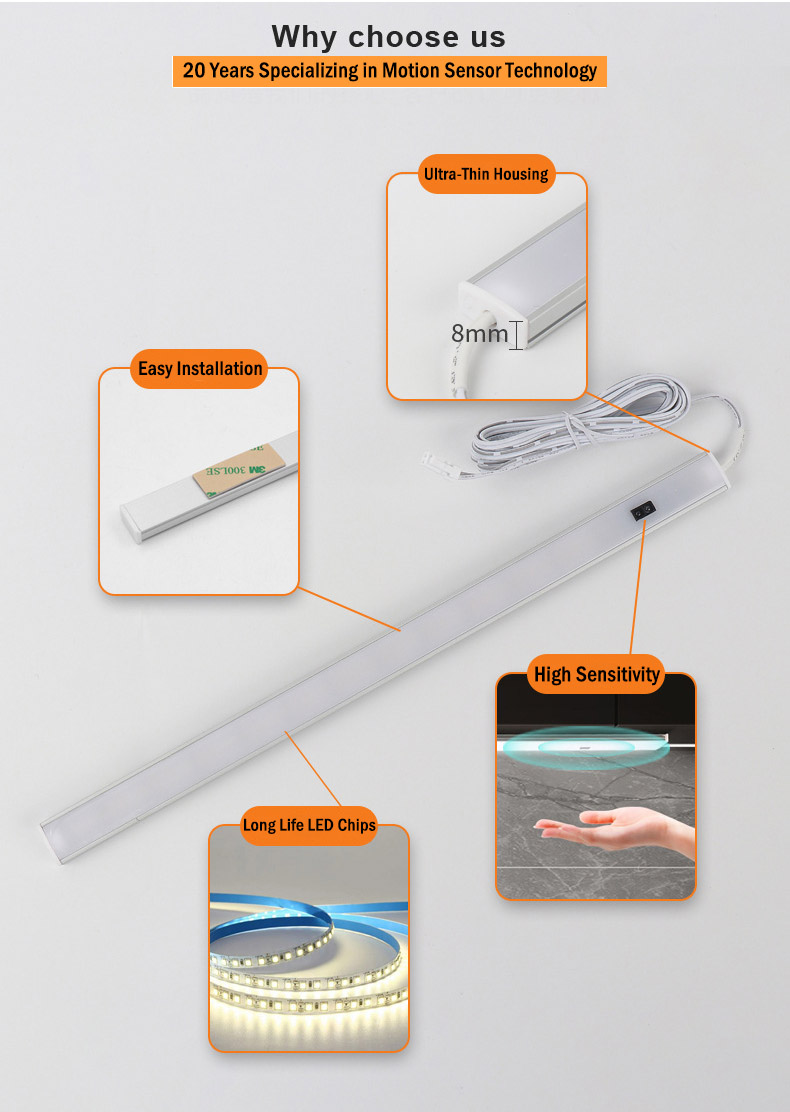

Ultra-Slim Design – Modern look, only a few millimeters thick
Surface Mounted – Easy installation without grooving or cutting
Energy Saving – Lights up only when motion is detected
IP20 Rated – Suitable for indoor use

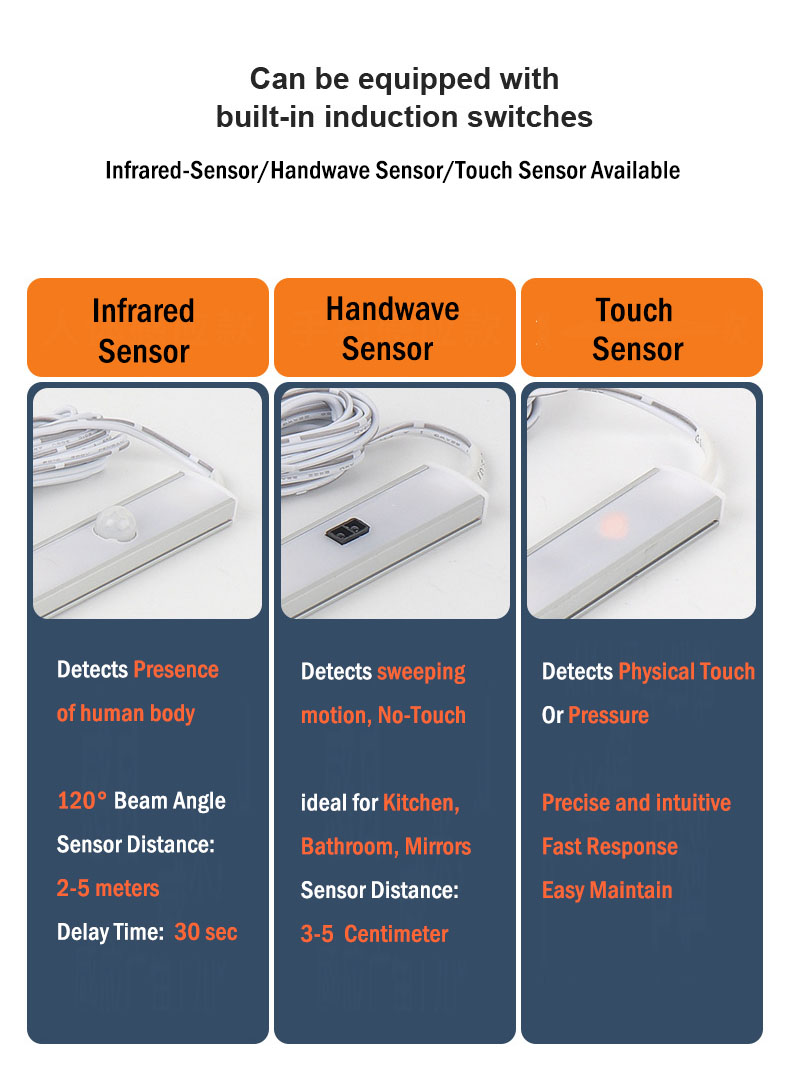

Data sheet for PIR Motion Sensor Cabinet Lamp for Wardrobe Length to be customized. PIR/Touch/Handwave Sensor Available | |
---|---|
Item No | AM-M1808 |
Voltage | DC5V / DC12V / DC24V / AC220V |
Housing Size | 17.5*7mm |
Mounting | Surface Mount |
IP Rating | IP20 |

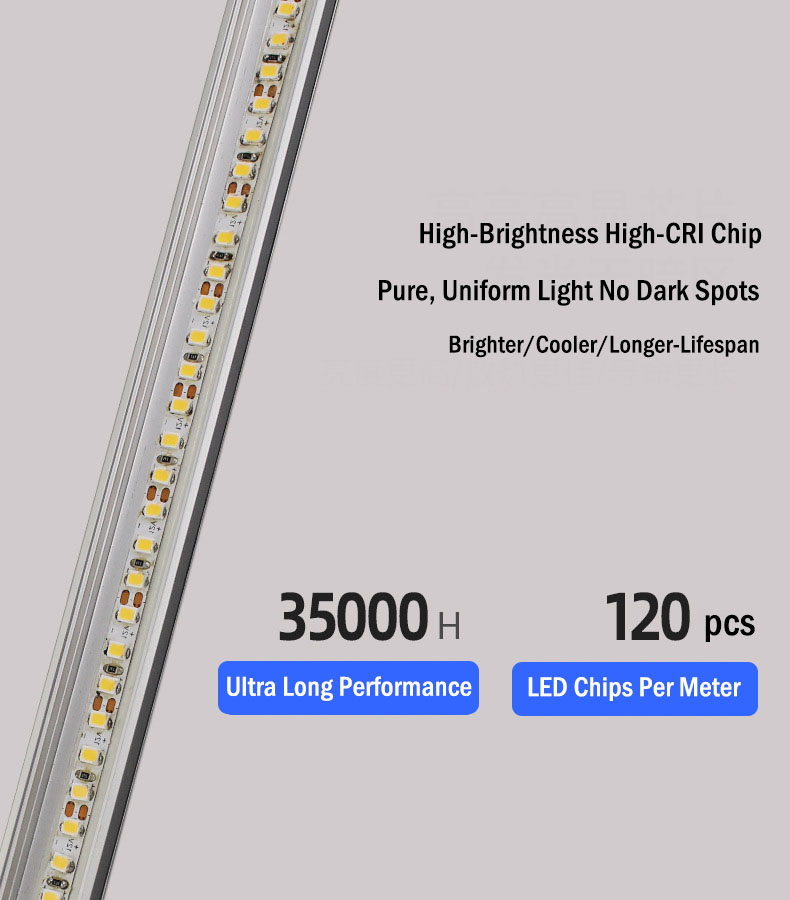

LED Qty/M | 120pcs*SMD2835 |
Output Lumen | 1200lm/M |
CCT | 3000K /4000K/ 6000K |
Rated Power | 12W/m |
Beam Angle | 120 degree |
CRI | Ra 80 |
Body Finish | White/Black |
Lamp life | 35000 hours |
Connection | Hardwired tail 2m length white |
Material | Aluminum & PC |

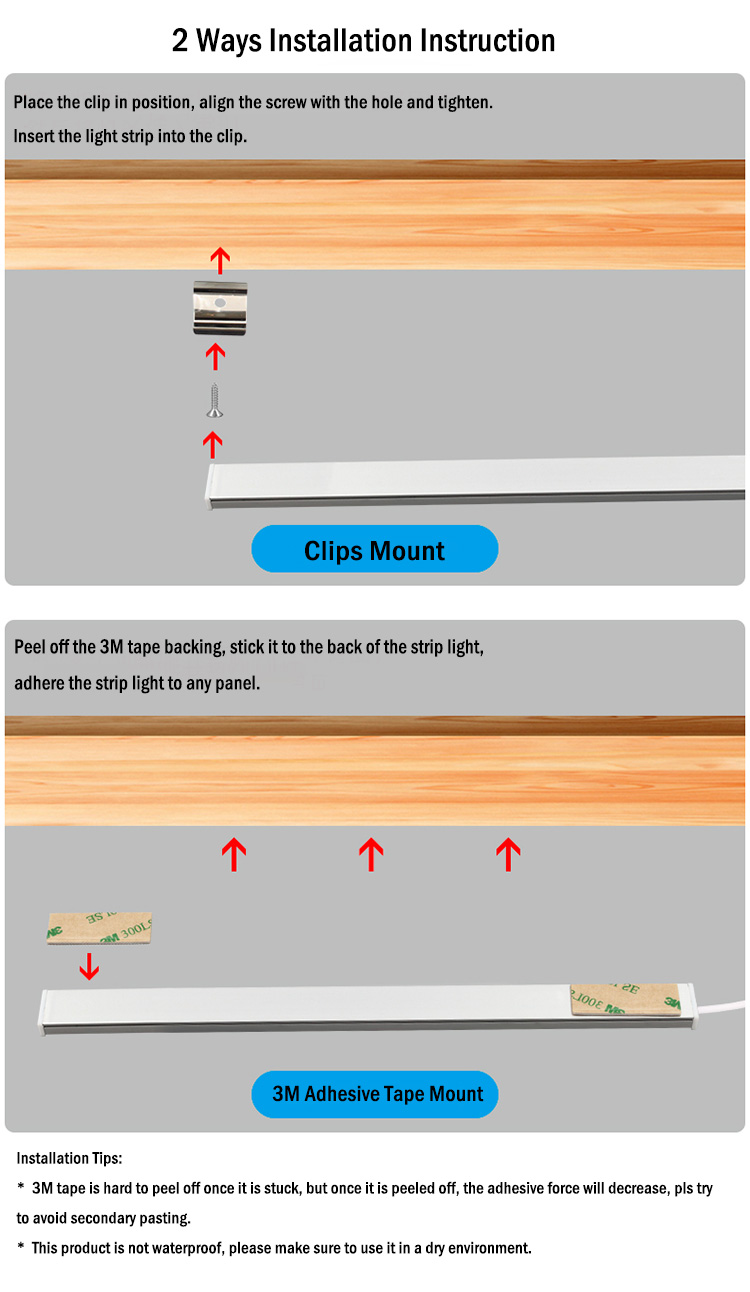

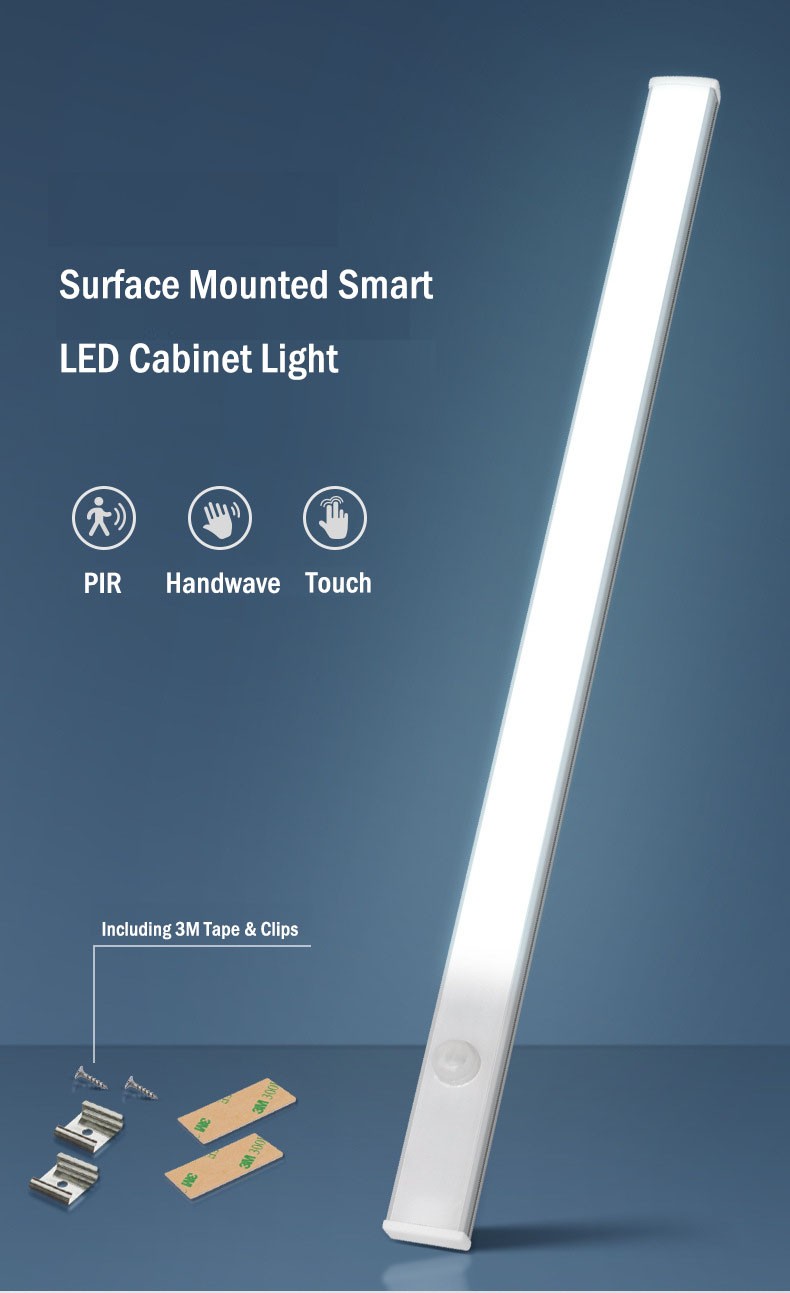

Installation | Clips Mount / 3M Tap Sticker Mount |
Sensor Data | |
Sensor principle | PIR Sensor |
Daylight Sensor | < 15 LUX |
Transmission power | <0.2mW |
Detection range | 2-5m |
Delay Time | 30 sec |
Sensor mode | Full to Off (100%-off) |
Customer Questions & Answers

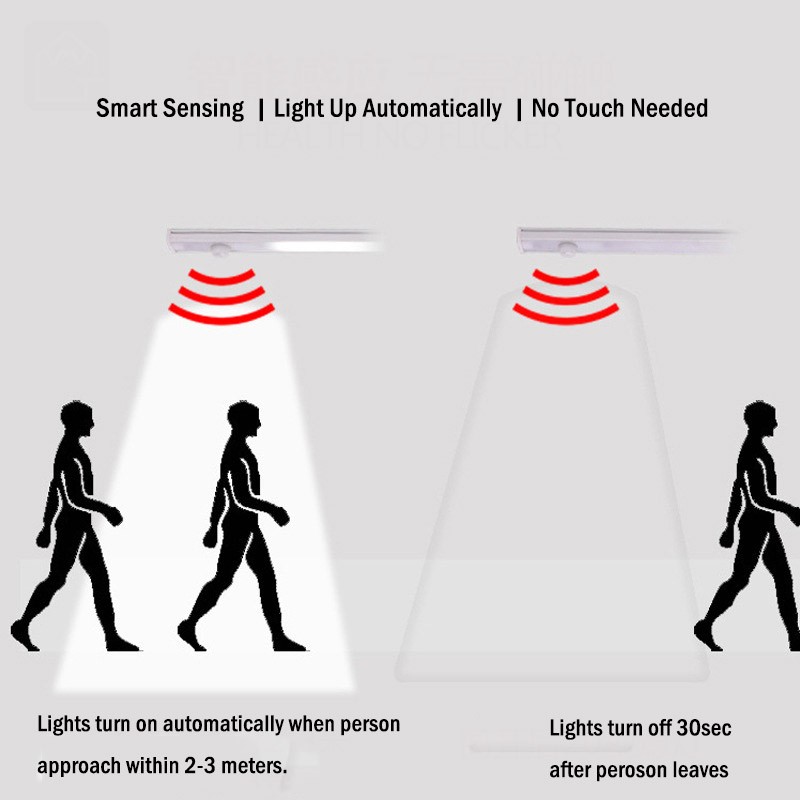

Sensor type : ON/OFF Mode (100%-0%)
When detect human presence (humen temperature), Light turns on at 100% brightness,
No movement, stand by status lights off (0%)
Delay time: 30 seconds
Mean: After people left 30sec, the light turns off automatically
Quality control:
We have three sensor test rooms, make sure each lamps passed stricly sensor function test and aging test before shipping.
Warranty : 3 years
