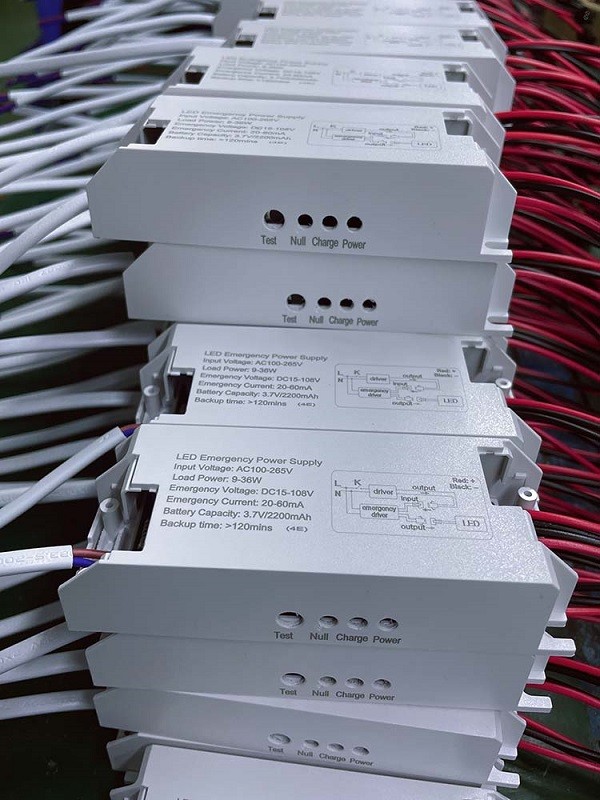

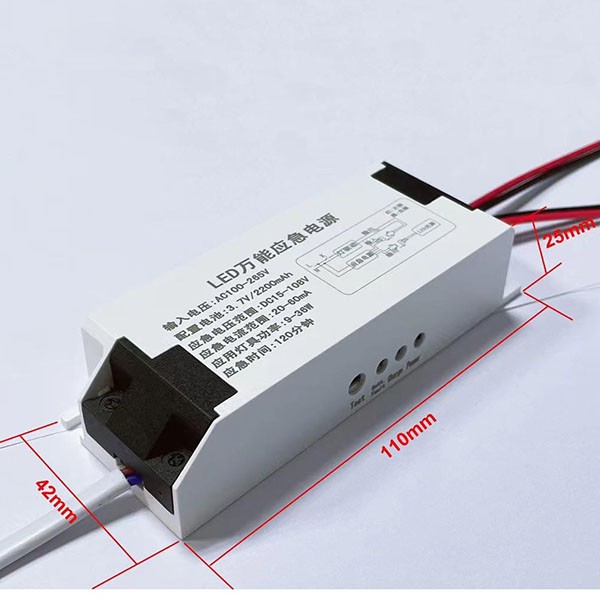

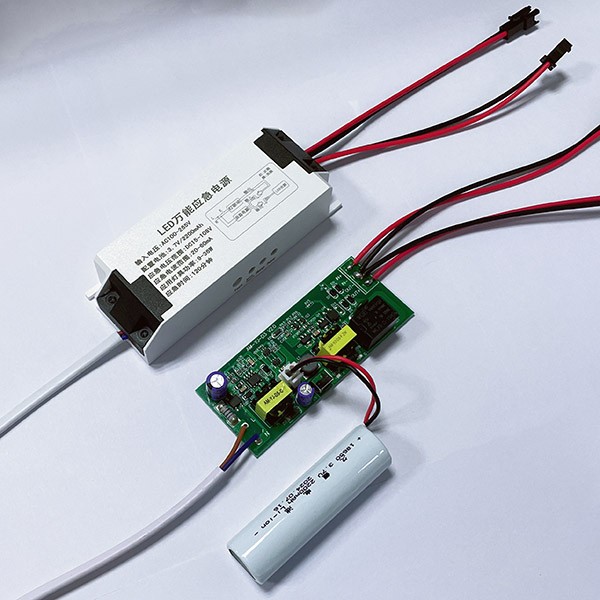

120min Backup Built-in Lithium battery Rechargeable Emergency Light driver for LED Panel Batten Troffer Downlight

LED emergency drivers regulate the power supplied to the LED fixture so that it can operate as a light source in the event of a power failure. The purpose of emergency lighting is to insure that lighting is provided promptly, automatically and for a suitable time when the normal power supply fails.

• Provides constant power output to the load during emergency mode operation.

• Can be operated as NORMALLY-ON, NORMALLY-OFF or SWITCHED LOAD.

• Universal 85-265V, 50/60Hz input

• 120 MInute minimum emergency operating time (other run times available upon request)

• 24 Hour maximmum battery recharge time.

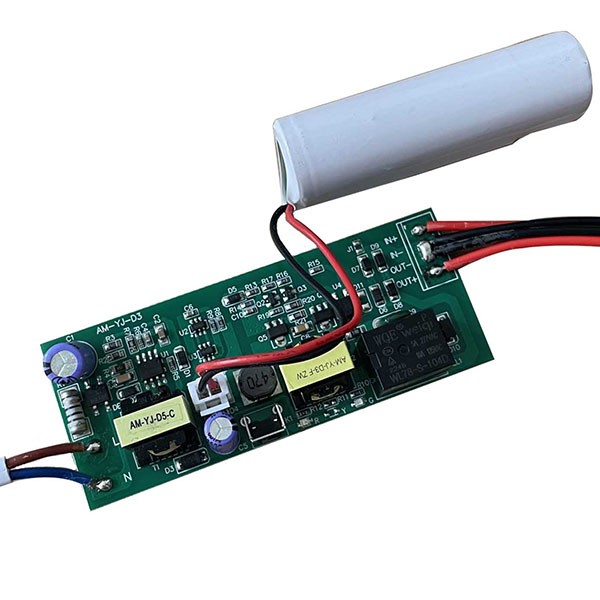

• Longlife, maintenance free, rechargeable lithium battery

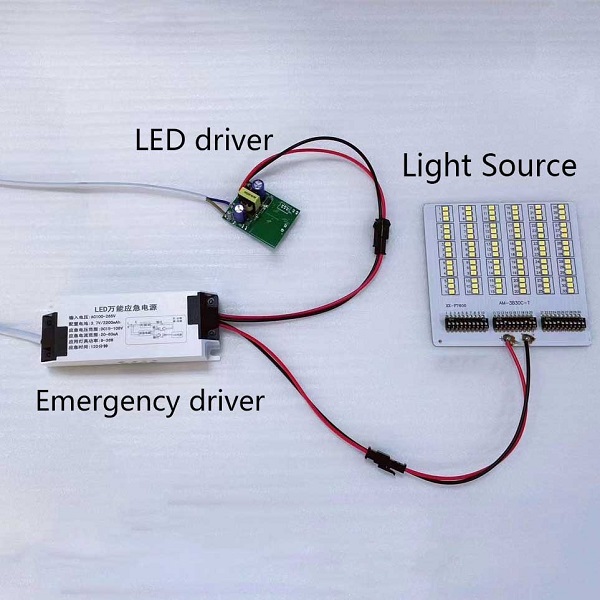

AC Operation

• When AC power is presenet, the LED load from the LED driver is at normal power supply,

• AC LED driver output current can not exceend 36W, the emergency driver is charging in standby mode.

Emergency Operation:

• When the AC power goes out, the emergency driver detects the AC power outage and automatically switches to the working emergency mode.

• The green LED light will switch off, When the AC power starts working and  starts re-charging, the green LED light on.

Application type:

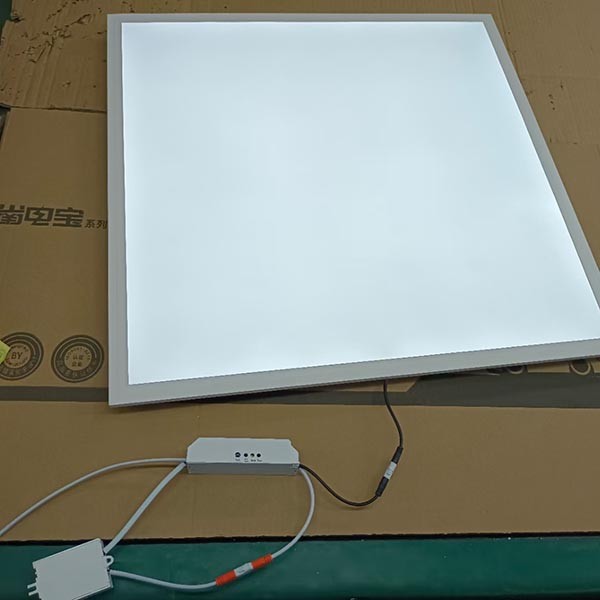

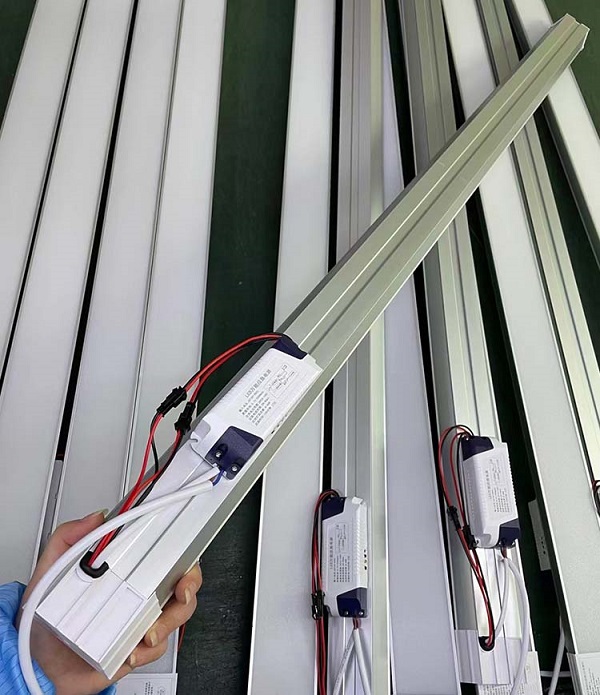

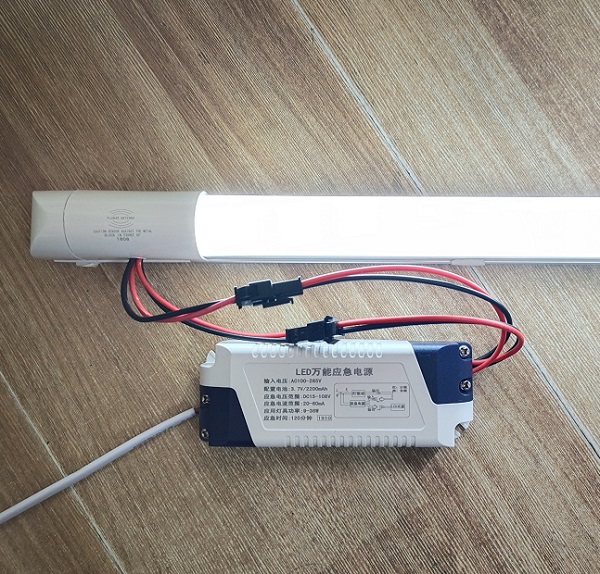

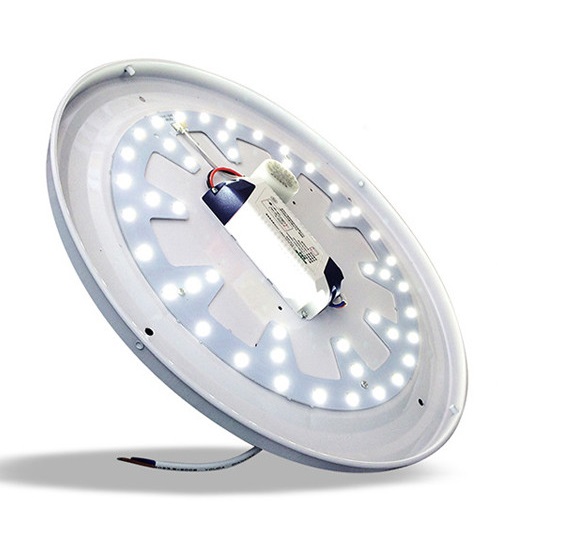

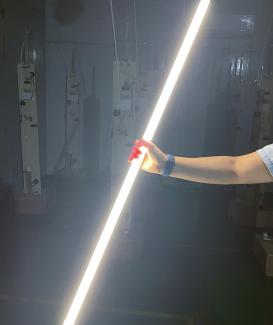

LED Batten, LED Downlight, LED Linear light, LED ceiling light. LED Batten, LED street light
