18W-36W 280mA DC100-165V Output Radar Motion Sensor LED Driver Power Supply for street light
This radar motion sensor LED driver power supply is designed for street lights, troffer lights, and panel lights. It operates at an input voltage of AC185-265V and supports a current output range of 280mA and output voltage 100-165VDC. The driver is suitable for various outdoor and indoor lighting applications where motion detection and efficient power management are required.
18W-36W 280mA DC100-165V Output Radar Motion Sensor LED Driver Power Supply for street light
This radar motion sensor LED driver power supply is designed for street lights, troffer lights, and panel lights. It operates at an input voltage of AC185-265V and supports a current output range of 280mA and output voltage 100-165VDC. The driver is suitable for various outdoor and indoor lighting applications where motion detection and efficient power management are required.
Product Features:
Radar Motion Sensor: Utilizes radar technology for precise motion detection, enhancing energy efficiency by activating lights only when needed.
Wide Input Voltage Range: Supports AC185-265V input voltage, suitable for different geographical locations and power grids.
Stable Current Output: Provides a stable output current of 280mA, ensuring consistent and reliable operation of LED lights.
Compact Design: Compact and lightweight design for easy installation and integration into existing lighting fixtures.
High Efficiency: Offers high energy efficiency, reducing power consumption and operational costs over time.
Durable and Weatherproof: Built to withstand outdoor conditions, ensuring longevity and reliability in various environmental conditions.
| Specification for 18W-36W 280mA DC100-165V Output Radar Motion Sensor LED Driver Power Supply for street light | |
| Model no | AM-90XD36WM |
| Operation voltage | 185-265Vac 50/60Hz |
| Output Power | 18-36W |
| Ouput voltage | DC100-165V |
| Output current | 280mA |
| Power factor | 0.5 |
| HF system | 3.3GHz OR 5.8GHz |
| Transmitting power | <0.5mW |
Control Light source type | On/Standby (100%-20%) On/Off (100%-0%) |
| Detection range | 6-8m radius |
| Detection angle | 180*360 degree |
Hold time (Default) | 15-20s （30s/60s/2mins/3mins set by factory) |
| IP rating | IP20 |

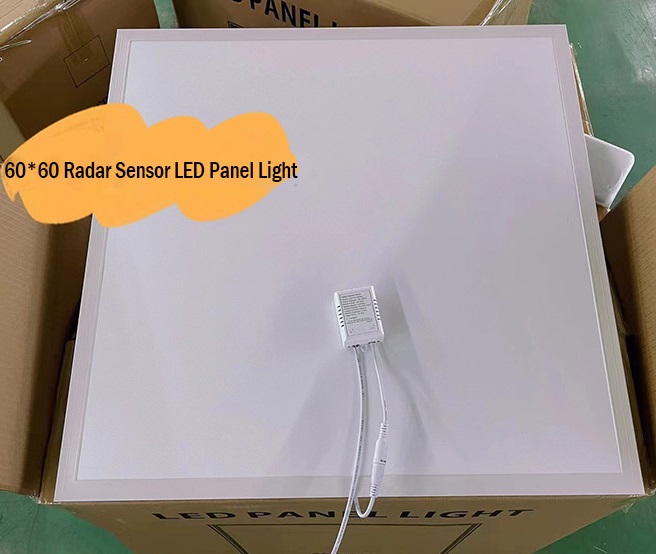

| Light source type | The radar motion sensor drivers are ideal for retrofit LED Panel light, LED Downlight, LED Ceiling light, LED Batten, LED Triproof light. LED Surface downlight etc. |

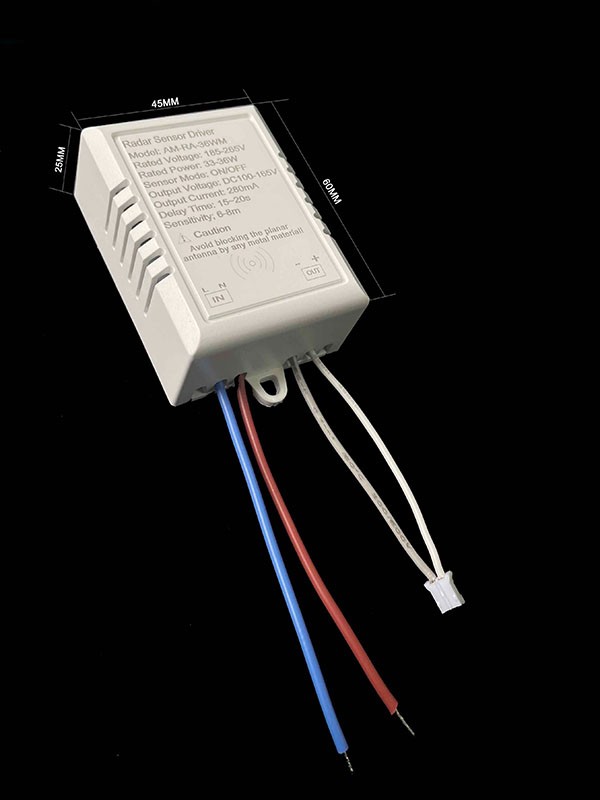

| Size(mm) | 60*45*24(with housing) |
| Application type | With motion sensor Corridor, staircase, lobby, balcony, hallway, |
| MOQ | 100pcs |
| Lead time | 1000pcs: 7 days 5000pcs: 15-20 days (depending on required specification) |
Application type:

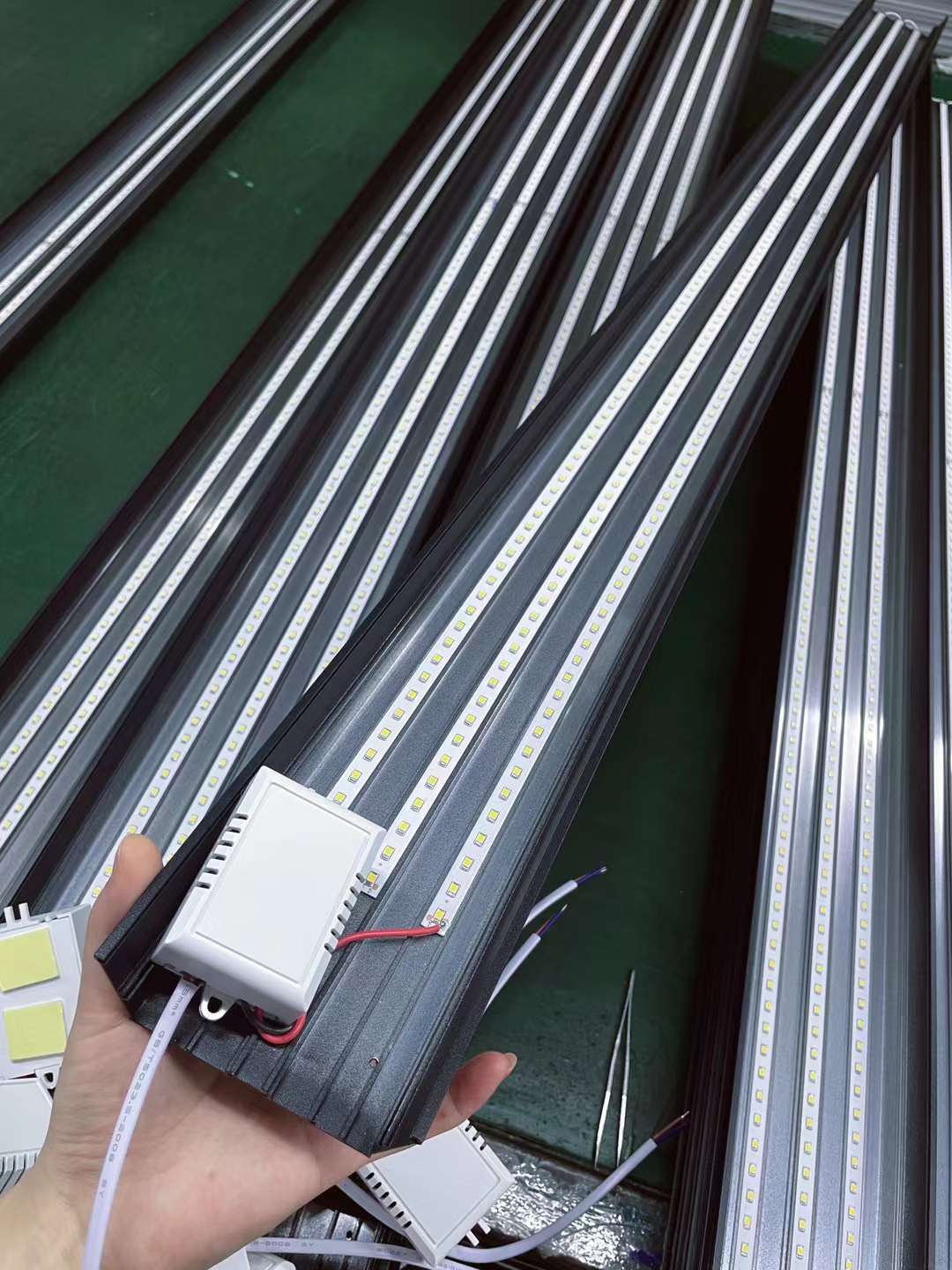

LED Batten, LED Downlight, LED Linear light, LED ceiling light. LED Batten, LED street light
FAQ:
1. What are the advantages of using a microwave radar sensor LED driver?
Microwave radar sensors have a wider coverage area compared to traditional infrared sensors, making them suitable for large spaces.
They can penetrate obstacles like glass and plastic, allowing concealed installation.
Radar sensors are less affected by environmental factors like temperature and humidity.
LED drivers with radar sensors can provide intelligent lighting control, saving energy and increasing efficiency.
2. How does the microwave radar sensor work?
The microwave radar sensor emits microwave signals and measures the time it takes for these signals to bounce back after hitting an object. By analyzing the frequency shift of the returned signals, the sensor can determine the distance, direction, and speed of moving objects. When it detects movement within its range, it sends a signal to the LED driver to turn on or adjust the LED lights accordingly.
