Multi-output current Smart LED Driver with Built-in Microwave Sensor and dimming Function AM-90XD20B

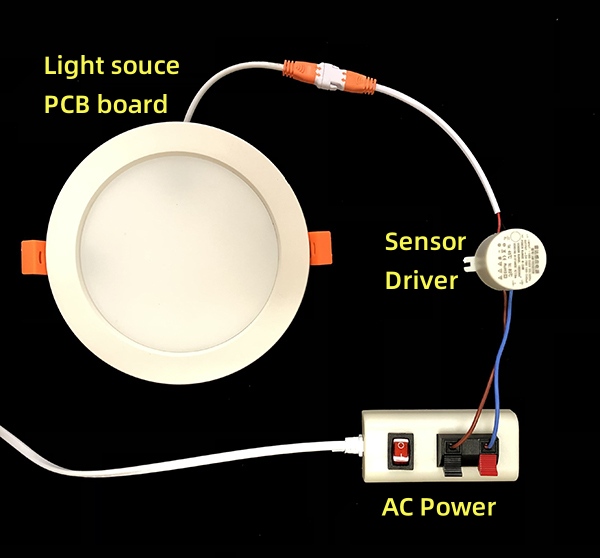

No need normal drivers. Just Connect to LED Light source directly.

The smart LED driver is designed for easy integration into existing lighting systems, making it suitable for both retrofitting and new installations.

Multi-output current Smart LED Driver with Built-in Microwave Sensor and dimming Function AM-90XD20B

The Smart LED Driver with Built-in Microwave Sensor and Low Brightness Function is an innovative lighting solution that combines intelligent control and energy efficiency. Equipped with a built-in microwave sensor, it detects motion and automatically switches the connected LED lights from a low brightness level to full brightness. This feature ensures energy savings while providing sufficient illumination for various applications. With its smart capabilities, this LED driver offers convenience and enhanced lighting performance.

  • Microwave Sensor Technology: The built-in microwave sensor utilizes advanced technology to detect motion accurately, allowing for intelligent lighting control.

  • Energy-Saving "Low Brightness" Mode: The driver offers a unique "Low Brightness" mode that automatically adjusts the LED lights to a lower intensity when no motion is detected. This helps conserve energy while providing sufficient illumination for safety and convenience.

  • Customizable Settings: The LED driver allows users to adjust the sensitivity and duration of the microwave sensor according to their specific needs, providing a personalized lighting experience.

  • Seamless Integration: The smart LED driver is designed for easy integration into existing lighting systems, making it suitable for both retrofitting and new installations.

  • Reliable Performance: The built-in microwave sensor ensures reliable performance, accurately detecting motion even in various lighting conditions.

  • Enhanced Safety and Security: By automatically switching on the lights when motion is detected, the LED driver improves safety and security, especially in areas such as hallways, staircases, and outdoor spaces.

  • Energy Efficiency and Cost Savings: The combination of the microwave sensor and "Low Brightness" mode significantly reduces energy consumption, leading to cost savings on electricity bills.

  • Versatile Applications: This LED driver with a built-in microwave sensor and "Low Brightness" function is suitable for a wide range of applications, including residential, commercial, and public spaces.

Specification for Multi-output current Smart LED Driver with Built-in Microwave Sensor and dimming Function
Item nameMicrowave Motion Sensor LED Driver
Model no

AM-90XD20B

Operation voltage185-265Vac, 50/60Hz
Output Power8-18W
Ouput voltageDC24-82V
Output current100-240mA
Power factor0.5
HF system3.3GHz/5.8GHz
Transmitting power<0.5mW
Control Light source typeOn/Off or Dimming function
Detection range6-8m
Detection angle140 degree
Hold time15-20s (default)
Ambient light level10-15lux (optional for On/Off mode)
IP ratingIP20
Light source type

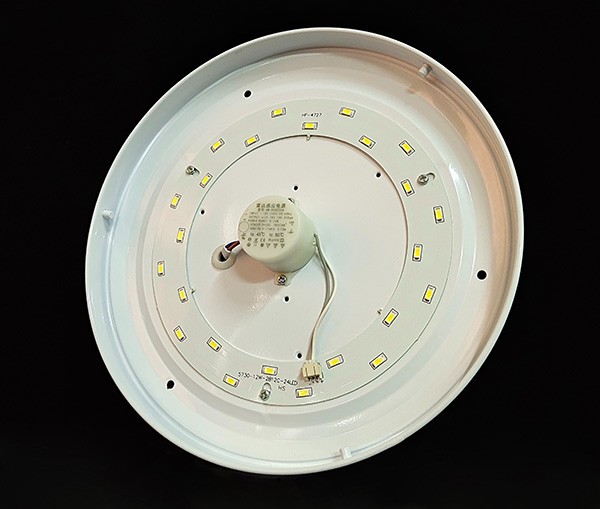

LED Panel light, LED Downlight, LED Ceiling light, LED Batten
SizeDia 40*34mm

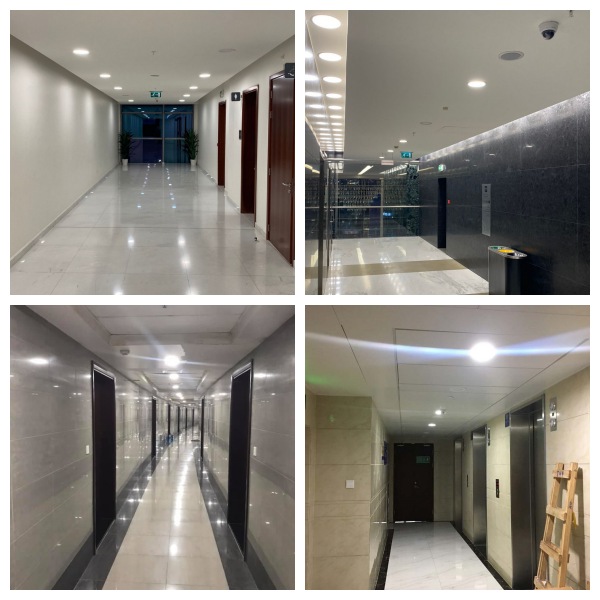

Application typeCorridor, staircase, lobby, balcony, hallway,
MOQ
100pcs
Package details

100pcs/box, 33*18*16cm, 2kgs/box

500pcs/box, 40*35*22cm, 5kgs/box

Lead time

1000pcs: 7 days

10000pcs: 15-20 days (depending on required specification)

Microwave Induction Sensor_副本.jpg

Dimming function Sensor LED Driver.jpg


sensor switch.jpgradar motion sensor switch.jpg


Here are some frequently asked questions (FAQ) regarding microwave motion sensor switches:

Q1: How does a microwave motion sensor switch work? A: A microwave motion sensor switch emits microwaves and detects the reflected waves. When motion is detected within its range, it triggers the connected lighting system to turn on. If no movement is detected for a certain period, it switches off the lights to conserve energy.

Q2: What is the detection range of a microwave motion sensor switch? A: The detection range can vary depending on the specific model and application. It is typically specified by the manufacturer and can range from a few meters to tens of meters.

Q3: Can microwave motion sensor switches detect motion through walls or obstacles? A: Yes, microwave waves can penetrate walls and objects, allowing the sensor to detect motion even when the object is not directly in its line of sight. This is one of the advantages of microwave sensors over other types of motion sensors.

Q4: Are microwave motion sensor switches sensitive to interference from other devices? A: Microwave sensors can be affected by interference from other electronic devices that emit microwaves, such as Wi-Fi routers or microwave ovens. However, manufacturers often employ techniques to minimize false triggering caused by such interference.

Q5: Can the sensitivity of a microwave motion sensor switch be adjusted? A: This model is not available, we have other types with dip switch, sensitivity, delay time, lux level can be adjusted.
