12W 150mm Smart Circle Ceiling Light Retrofit Module with 5.8GHz Inbuilt Microwave Motion Sensor
Discover the 12W Smart Circle Ceiling Light Retrofit Module with a 5.8GHz Microwave Motion Sensor. Compact, energy-efficient, and ideal for modern interiors. Perfect for homes and commercial spaces.
12W 150mm Smart Circle Ceiling Light Retrofit Module with 5.8GHz Inbuilt Microwave Motion Sensor
This 12W smart ceiling light retrofit module is designed to provide efficient and intelligent lighting solutions for modern interiors. With a 150mm diameter and a 5.8GHz inbuilt microwave motion sensor, the module offers energy-saving benefits by automatically turning on or off based on occupancy detection. It provides a sleek, minimalist design ideal for both residential and commercial settings. The smart functionality ensures the light only operates when needed, optimizing energy consumption.
Product Features:
Energy-Efficient Lighting: Consumes just 12W of power while delivering bright, consistent illumination.
5.8GHz Microwave Motion Sensor: Integrated motion sensor detects movement and adjusts lighting accordingly, enhancing energy savings.
Compact Design: With a 150mm diameter, it is perfect for ceiling installations, offering a modern and clean look.
Smart Operation: Automatically adjusts based on room occupancy, reducing energy waste and ensuring convenience.

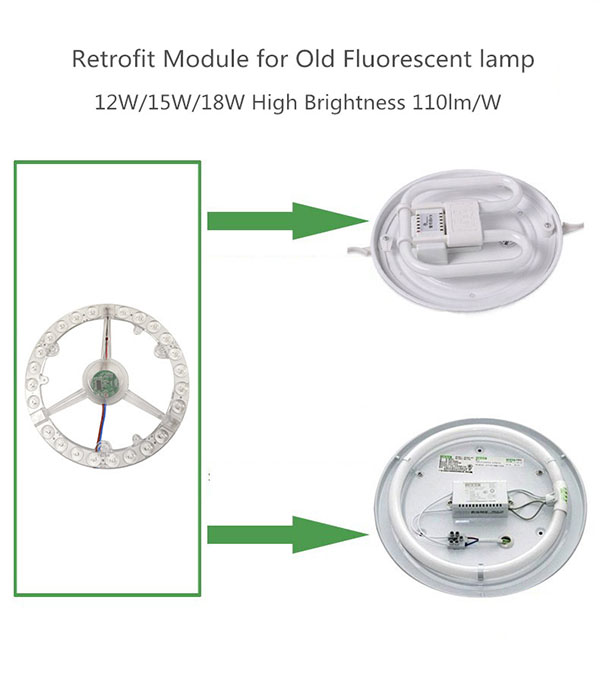

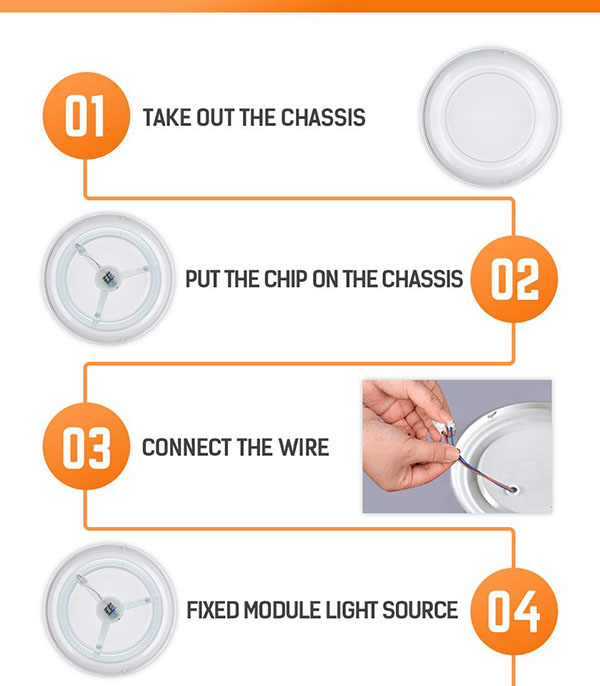

Easy Installation: Designed for easy integration into ceiling lights, suitable for retrofit projects.
Wide Application: Perfect for homes, offices, and commercial spaces where intelligent lighting is needed.

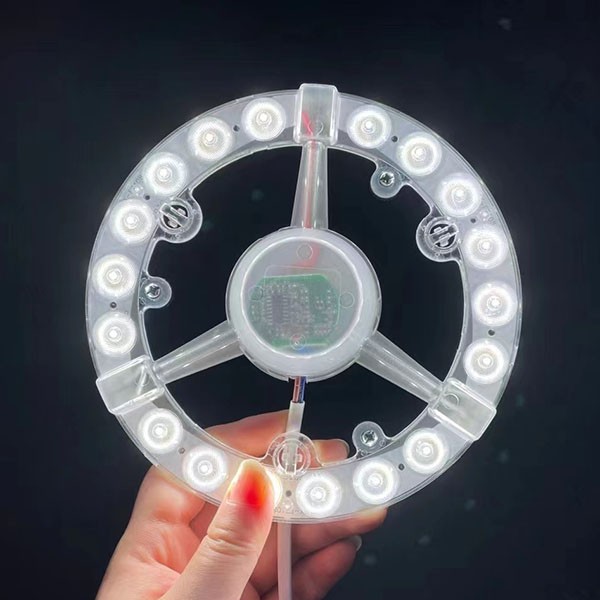

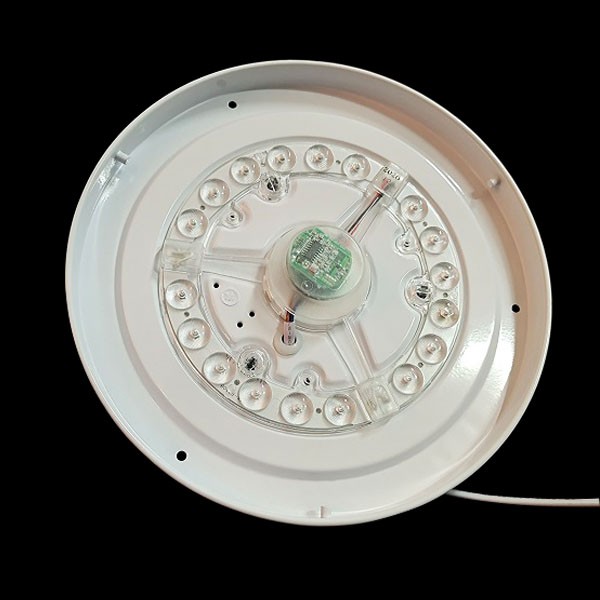

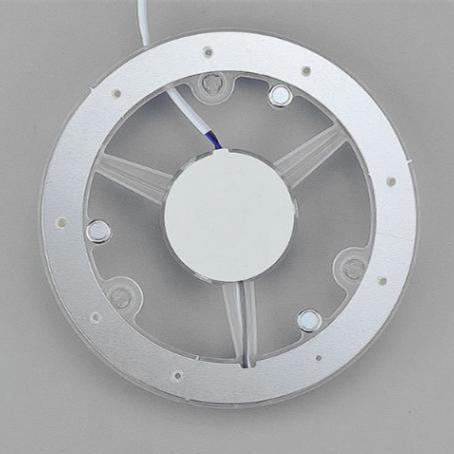

Microwave Sensor Retrofit Round PCB LED Light Soucre Module | ||
|---|---|---|
| Item No | AM-150XD12MS | AM-195XD18MS |
| Voltage | 185-265Vac | 185-265Vac |
| Size | Dia 150*30mm | Dia 195*30mm |
| Power consumption | <0.5W | <0.5W |
| Rated power | 12W | 18W |
| LED Qty | 18pcs*SMD2835 | 24pcs*SMD2835 |
Lumen efficiency | >110lm/W | >110lm/W |
| CCT | 3000K/4000K/6000K | 3000K/4000K/6000K |
Power factor | 0.5 | 0.5 |
| Beam angle | 150 degree | 150 degree |
| CRI | Ra 80 | Ra 80 |
| Sensor Data | ||
| Sensor principle | HF Microwave | |
| Operation frequency | 5.8GHz | |
| Transmission power | <0.2mW | |
| Detection range | 8m*6m ( diamater*H) | |
| Hold time | 15-20s ( 30s/45s/60s/2mins optional ) | |
Sensor mode (2 Steps ) | Option 1: Full to Off (100%-off) Option 2: Full to Dim (100%-20% standby) | |
| Application | Garage, parking lot, basement, corridor, warehouse, storage room. | |
Customer Questions & Answers
Sensor type A: ON/OFF Mode (100%-0%)
When detect movement lighting, Light turn on at 100% brightness,
No movement, stand by status light off (0%)
Sensor type B: Full/Dim Mode (100%~20%)
When detect movement lighting, Light turn on at 100% Brightness,
No movement, stand by status lighting turn to 20% (2-3 watt)
Delay time: 15 seconds
Mean: the last movement past, light still keep on lighting 15 seconds
Quality control:

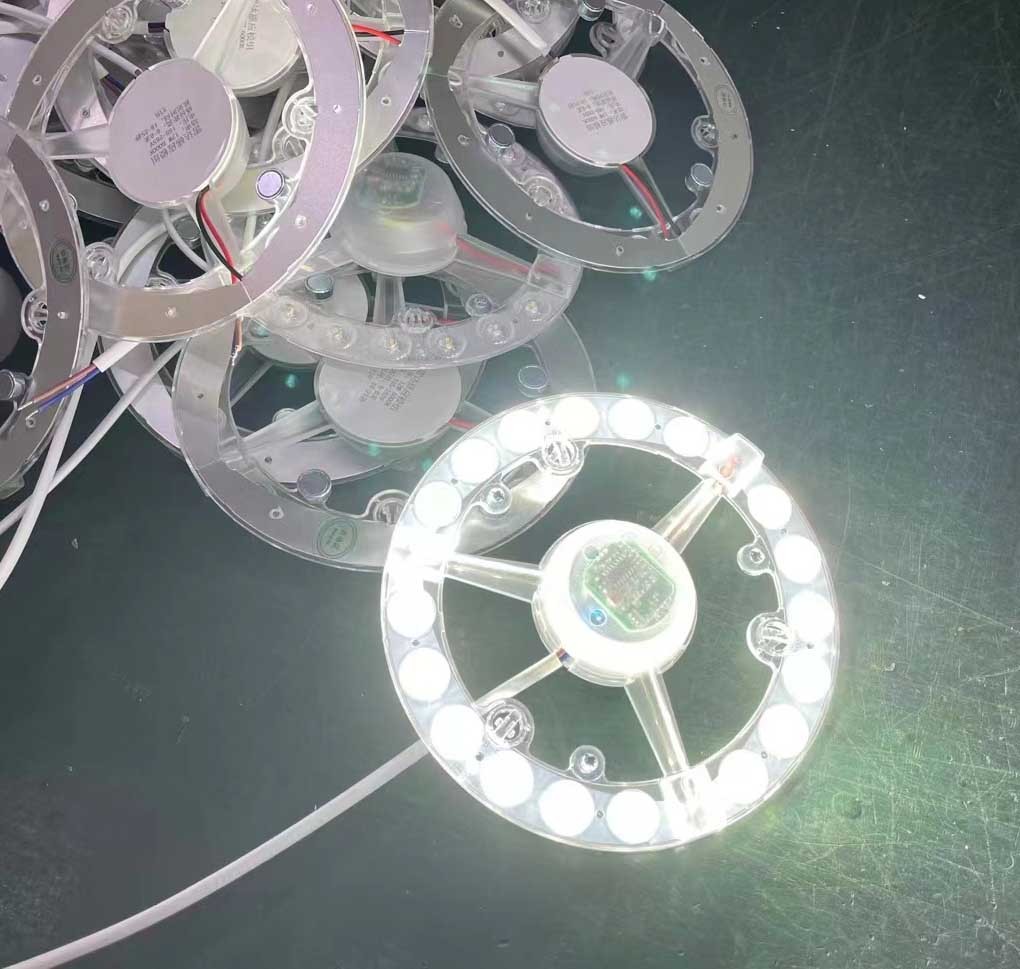

We have three sensor test rooms, make sure each lamps passed stricly sensor function test and aging test before shipping.
Warranty : 2 years
Application:
Ideal for domestic applications such as Corridor, cabinets, hallway, Stairways, attics, Basement, Warehouse, hallyway, Closet, Depot, Bathroom, Toilet, Childern Room.etc.
Business applications include shops, offices, warehouses, storerooms, workshops, cable ways, substations and archives
