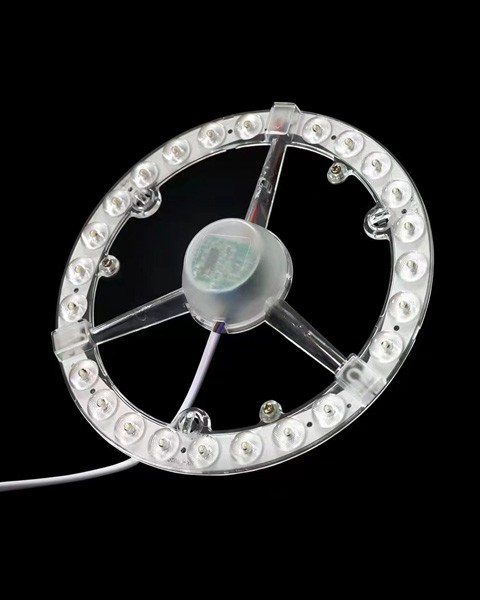

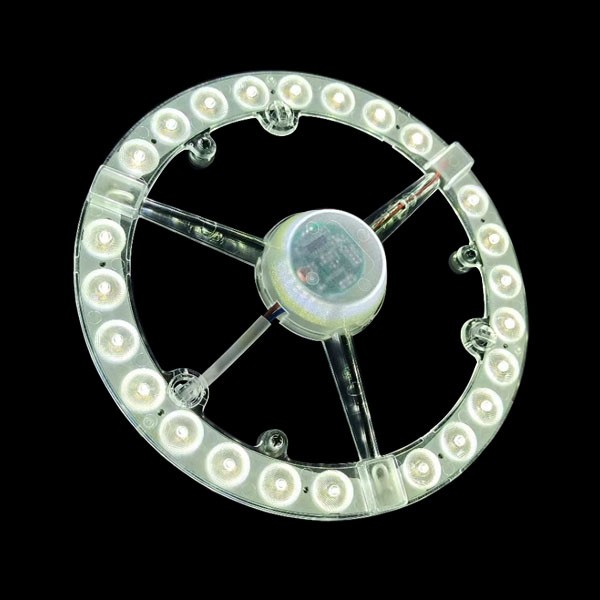

18W 195mm Built in Microwave Sensor Retrofit Round PCB LED Light Soucre Module for Existing Surface Lamp Replacement
this module combines advanced microwave sensor technology with efficient LED lighting. Perfect for replacing traditional lamp sources, it offers enhanced energy efficiency and superior performance. Ideal for both residential and commercial spaces, it ensures reliable operation and significant energy savings.
18W 195mm Built in Microwave Sensor Retrofit Round PCB LED Light Soucre Module for Existing Surface Lamp Replacement

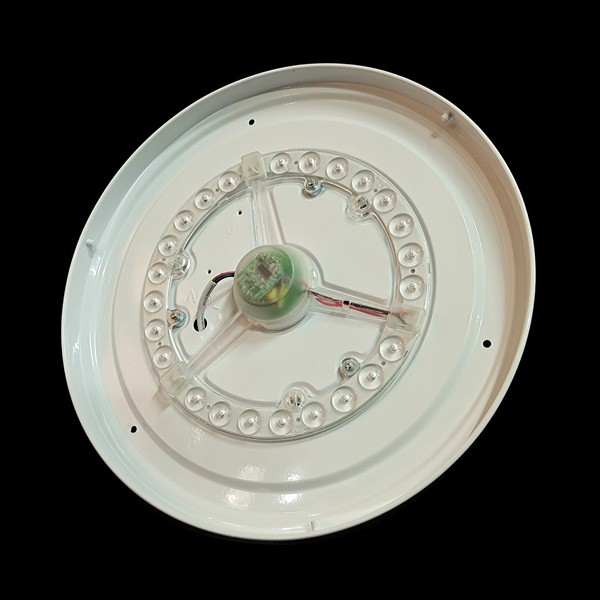

This innovative LED light source module is designed for easy retrofitting into existing surface-mounted lamps. Featuring a built-in microwave sensor, it enhances energy efficiency by automatically detecting motion and adjusting brightness accordingly. With a sleek round design and a diameter of 195mm, this module offers a modern look while providing bright illumination.
Product Features:
High Efficiency: Consumes only 18W while delivering powerful lighting, reducing energy costs.

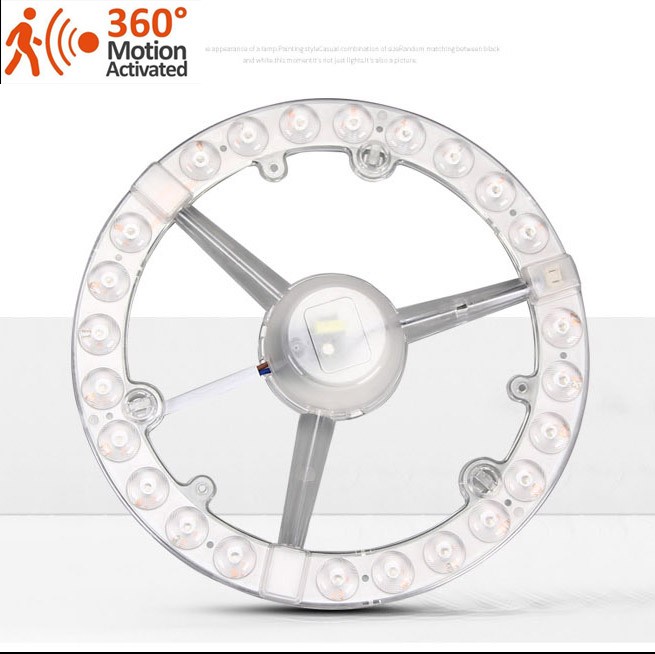

Built-in Microwave Sensor: Automatically turns on/off based on motion detection, ensuring convenience and energy savings.
Easy Installation: Designed for straightforward replacement in surface lamps, no additional fixtures required.
Durable Construction: Made from high-quality materials to ensure longevity and reliable performance.
Versatile Application: Ideal for residential, commercial, and industrial lighting needs.
Microwave Sensor Retrofit Round PCB LED Light Soucre Module | ||
|---|---|---|
| Item No | AM-150XD12MS | AM-195XD18MS |
| Voltage | 185-265Vac | 185-265Vac |
| Size | Dia 150*30mm | Dia 195*30mm |
| Power consumption | <0.5W | <0.5W |
| Rated power | 12W | 18W |
| LED Qty | 18pcs*SMD2835 | 24pcs*SMD2835 |
Lumen efficiency | >110lm/W | >110lm/W |
| CCT | 3000K/4000K/6000K | 3000K/4000K/6000K |
Power factor | 0.5 | 0.5 |
| Beam angle | 150 degree | 150 degree |
| CRI | Ra 80 | Ra 80 |
| Sensor Data | ||
| Sensor principle | HF Microwave | |
| Operation frequency | 5.8GHz | |
| Transmission power | <0.2mW | |
| Detection range | 8m*6m ( diamater*H) | |
| Hold time | 15-20s ( 30s/45s/60s/2mins optional ) | |
Sensor mode (2 Steps ) | Option 1: Full to Off (100%-off) Option 2: Full to Dim (100%-20% standby) | |
| Application | Garage, parking lot, basement, corridor, warehouse, storage room. | |
Customer Questions & Answers
Sensor type A: ON/OFF Mode (100%-0%)
When detect movement lighting, Light turn on at 100% brightness,
No movement, stand by status light off (0%)
Sensor type B: Full/Dim Mode (100%~20%)
When detect movement lighting, Light turn on at 100% Brightness,
No movement, stand by status lighting turn to 20% (2-3 watt)
Delay time: 15 seconds
Mean: the last movement past, light still keep on lighting 15 seconds
Quality control:
We have three sensor test rooms, make sure each lamps passed stricly sensor function test and aging test before shipping.
Warranty : 2 years
Application:
Ideal for domestic applications such as Corridor, cabinets, hallway, Stairways, attics, Basement, Warehouse, hallyway, Closet, Depot, Bathroom, Toilet, Childern Room.etc.
Business applications include shops, offices, warehouses, storerooms, workshops, cable ways, substations and archives
