8.5inch 230mm 12W IP42 Ultra Slim Round LED Flush Mount Panel Light Fixture with Built-in Radar Motion Sensor AM-US230XD12

This innovative fixture combines advanced LED technology with a built-in radar motion sensor, providing efficient and convenient lighting solutions for various spaces. With its ultra-slim design and reliable performance, this panel light is suitable for both residential and commercial applications.

8.5inch 230mm 12W IP42 Ultra Slim Round LED Flush Mount Panel Light Fixture with Built-in Radar Motion Sensor AM-US230XD12

Enhance your space with the efficiency and convenience of the 8.5-inch 12W LED Flush Mount Panel Light Fixture with Built-in Radar Motion Sensor. Experience reliable performance and modern style in one sleek package.

Product Features:

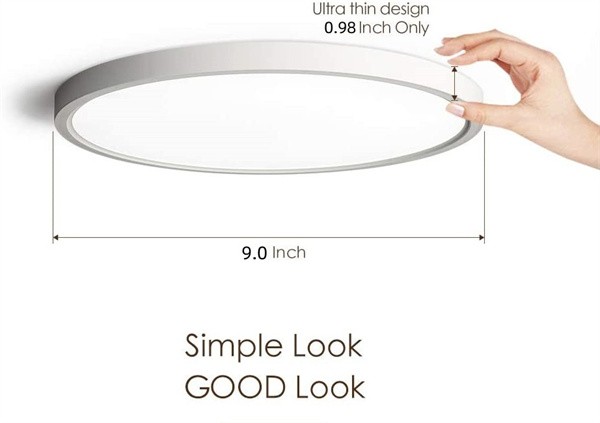

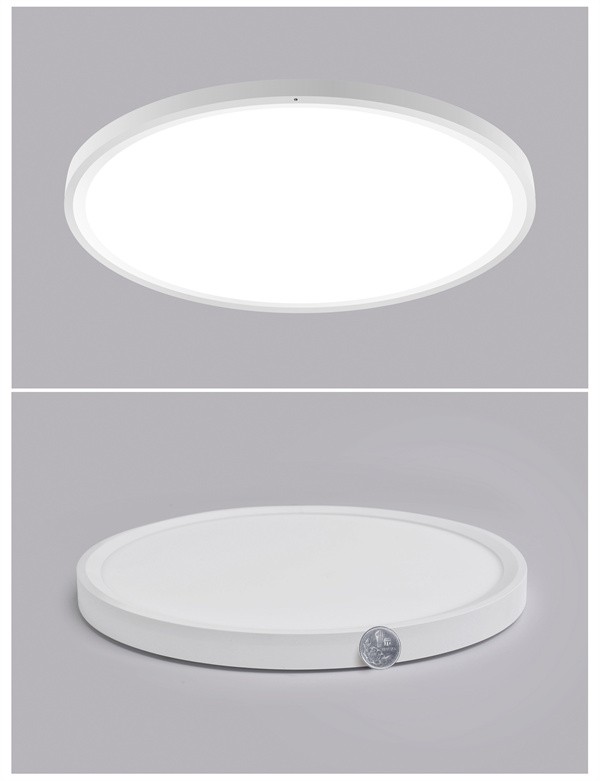

  • Ultra Slim Design: With a thickness of only 24mm, this panel light seamlessly integrates into any ceiling, offering a modern and minimalistic aesthetic.

  • High-Efficiency LED: Equipped with high-quality LEDs, this fixture delivers bright and uniform illumination while consuming minimal energy, resulting in significant cost savings.

  • IP42 Rating: Designed to withstand dust and moisture, this fixture is suitable for indoor environments, providing reliable performance even in challenging conditions.

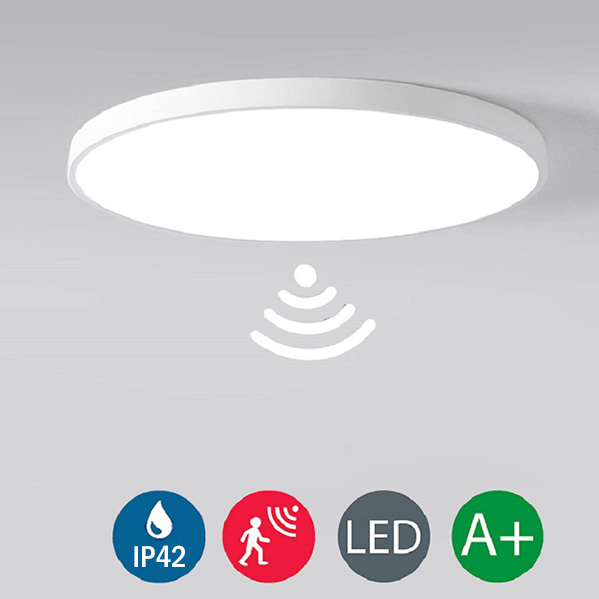

  • Built-in Radar Motion Sensor: The integrated radar motion sensor detects movement within its range, automatically turning the light on and off as needed, enhancing energy efficiency and convenience.

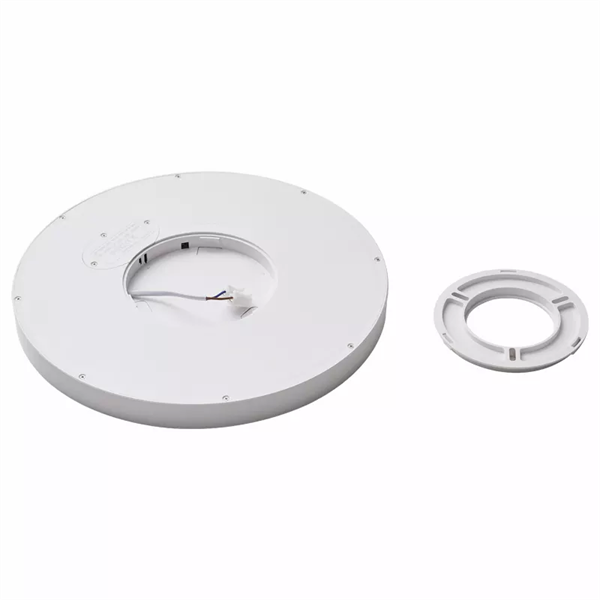

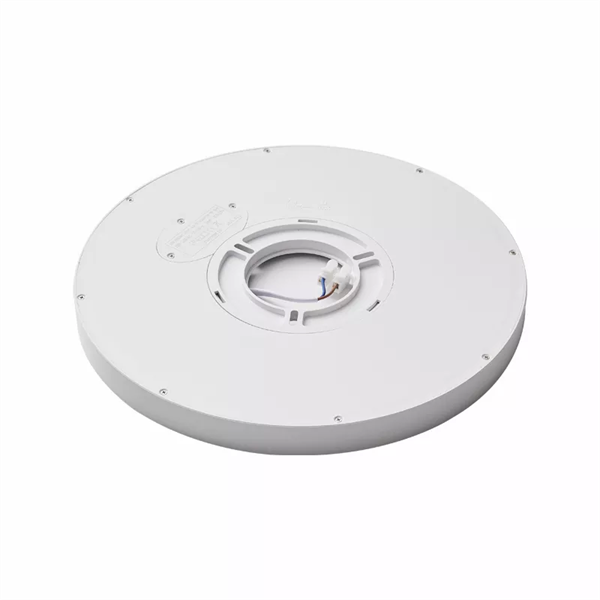

  • Easy Installation: Designed for hassle-free installation, this panel light comes with all necessary hardware and instructions, making it suitable for both DIY enthusiasts and professional installers.

  • Wide Application: Ideal for various settings, including residential, commercial, and industrial spaces, such as hallways, corridors, offices, kitchens, and more.


Data sheet for Ultra slim led ceiling light with Built in microwave sensor
Item NoAM-US230XD12AM-US300XD18
Voltage185-265Vac / 85-265Vac185-265Vac / 85-265Vac

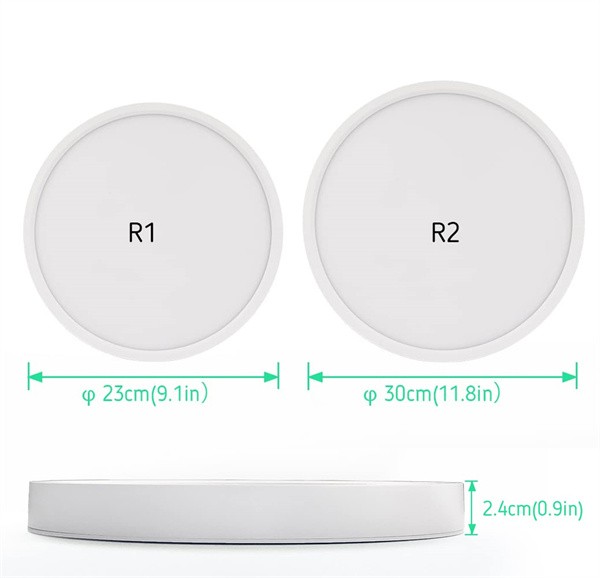

SizeDia 230*22mmDia 300*22mm
Power consumption
<0.5W<0.5W
Rated power12W18W
LED Qty72pcs*SMD283596pcs*SMD2835

Lumen efficiency

>90lm/W

>90lm/W
CCT3000K/4000K/6000K3000K/4000K/6000K

Power factor

0.5 or 0.9

0.5 or 0.9

Beam angle150 degree150 degree
CRIRa 80Ra 80
IP RatingIP42IP42
Sensor Data
Sensor principleHF Microwave
Operation frequency

3.3GHz

Transmission power<0.2mW
Detection range8m*6m ( diamater*H)
Hold time15±5s ( 30s/45s/60s/2mins optional )

Sensor mode

(2&3 Steps )

Option 1: Full to Off (100%-off)

Option 2: Full to Dim (100%-20% standby)

Option 3: On/Off with daylight sensor, work only at night

Option 4: Full to Dim to off (100%-20% standby-off)

ApplicationCarpark, parking lot, basement, corridor, warehouse, storage room.

Ultra slim flat LED panel light.jpg



Customer Questions & Answers



  • Sensor type A:    ON/OFF Mode (100% On-0% Off)

          When detect movement lighting, Light turn on at 100% brightness,

          No movement, stand by status light off (0%)

  • Sensor type B:   Full/Dim Mode (100% on~20% standy)

          When detect movement lighting, Light turn on at 100% Brightness,

          No movement, stand by status lighting turn to 20% (2-3 watt)

  • Sensor type C:   Full/Dim/off Mode (100% On~Standby-Off)

          When detect movement lighting, Light turn on at 100% Brightness,

          No movement 20s (to be customized), stand by status lighting turn to 20% (to be customized)

          After No movement 1min (cutominzed), Light turns off automatically.

  • Delay time: 15 seconds ( To be customized)

           Mean: the last movement past, light still keep on lighting 15 seconds

  • Quality control:

           We have three sensor test rooms, make sure each lamps passed stricly sensor function test and aging test  before shipping.

  • Warranty : 2 years

  •  Application:

          Ideal for domestic applications such as Corridor, cabinets, hallway,  Stairways, attics, Basement, Warehouse, hallyway, Closet, Depot, Bathroom, Toilet, Childern Room.etc.

          Business applications include shops, offices, warehouses, storerooms, workshops, cable ways, substations and archives
