280mm 12W Waterproof IP54 Flush Mounted LED Ceiling Light Fitting for corridor balcony Kitchen Garage Hallway

At day time, With sufficient ambient brightness, The ceiling light will keep off and not be triggered by any motion.
At night time, If there is no sufficient ambient brightness, the light will turns on when motion activated, and turns off automatically after 15-20s.

280mm 12W Waterproof IP54 Flush Mounted LED Ceiling Light Fitting for corridor balcony Kitchen Garage Hallway

The 280mm 12W Waterproof IP54 Flush Mounted LED Ceiling Light Fitting is designed to provide bright and efficient lighting for various indoor and outdoor areas such as corridors, balconies, kitchens, garages, and hallways. With an IP54 rating, this ceiling light is protected against dust and water splashes, making it ideal for environments where moisture or dust is a concern. The flush-mounted design ensures a sleek and modern look, seamlessly fitting into any ceiling. Equipped with LED technology, it offers energy efficiency, long lifespan, and consistent illumination, perfect for both residential and commercial spaces.



Key Features:

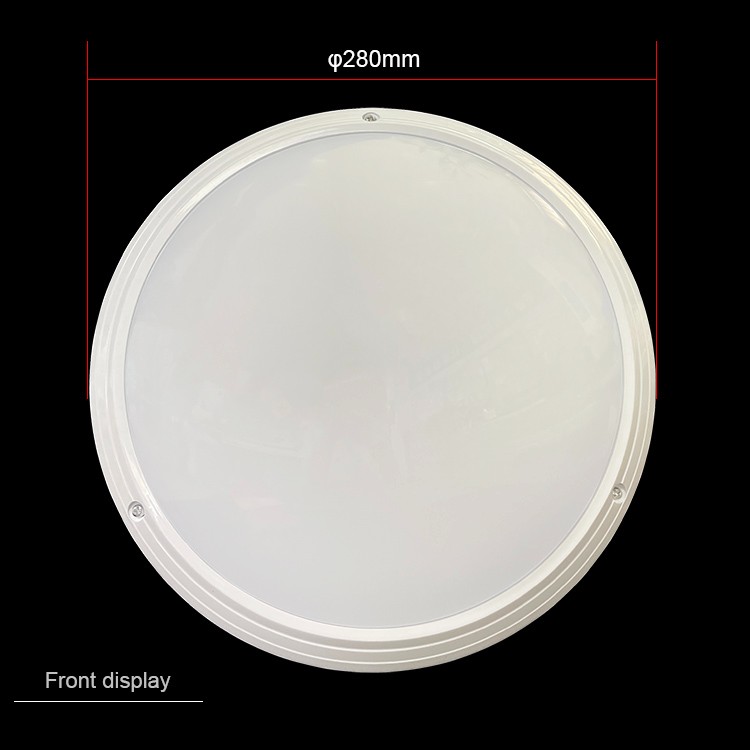

  • Size: 280mm diameter*90mm (height)

  • Power: 12W

  • IP Rating: IP54, dust and water-resistant

  • Lighting Type: LED for energy efficiency

  • Mounting Style: Flush-mounted for a sleek and compact appearance

  • Suitable for: Corridors, balconies, kitchens, garages, hallways

  • Durability: Built to withstand humid and dusty environments

  • Color Temperature: Typically available in warm white (3000K) or cool white (4000K)

  • Material: Durable housing with a diffuser to ensure even light distribution

  • Lifespan: Long-lasting LED technology with low maintenance

  • Motion sensor:Its motion detector allows it to automatically turn on the light when it senses movement, saving a significant amount of energy. The sensor has a 20-second delay, indicating the duration it stays activated after motion detection ceases.

Data sheet for IP54 Radar Motion sensor LED Surface Mounted Ceiling light
Item NoAM-XD280RD12AM-XD330RD18
Voltage185-265Vac185-265Vac
SizeDia 280*95mmDia 330*95mm
Power consumption
<0.5W<0.5W
Rated power12W18W
LED Qty18pcs*1W*SMD283524pcs*1W*SMD2835

Lumen efficiency

>70lm/W

>70lm/W
CCT3000K/4000K/6000K3000K/4000K/6000K

Power factor

0.5

0.5

Beam angle150 degree150 degree
CRIRa 80Ra 80
Sensor Data
Sensor principleHF Microwave
Operation frequency

5.8GHz

Transmission power<0.2mW
Detection range8m*6m ( diamater*H)
Hold time15±5s ( 30s/45s/60s/2mins optional )

Sensor mode

(2 Steps )

Option 1: Full to Off (100%-off)

Option 2: Full to Dim (100%-20%)

ApplicationCarpark, parking lot, basement, corridor, warehouse, storage room.

Customer Questions & Answers



  • Sensor type A:   ON/OFF Mode (100%-0%)

          When detect movement lighting, Light turn on at 100% brightness,

          No movement, stand by status light off (0%)

  • Sensor type B:  Full/Dim Mode (100%~20%)

          When detect movement lighting, Light turn on at 100% Brightness,

          No movement, stand by status lighting turn to 20% (2-3 watt)

  • Delay time: 15-20 seconds

           Mean: the last movement past, light still keep on lighting 15 seconds

  • Quality control:

           We have three sensor test rooms, make sure each lamps passed stricly sensor function test and aging test  before shipping.

  • Warranty : 2 years

  •  Application:

          Ideal for domestic applications such as Corridor, cabinets, hallway,  Stairways, attics, Basement, Warehouse, hallyway, Closet, Depot, Bathroom, Toilet, Childern Room.etc.

          Business applications include shops, offices, warehouses, storerooms, workshops, cable ways, substations and archives
