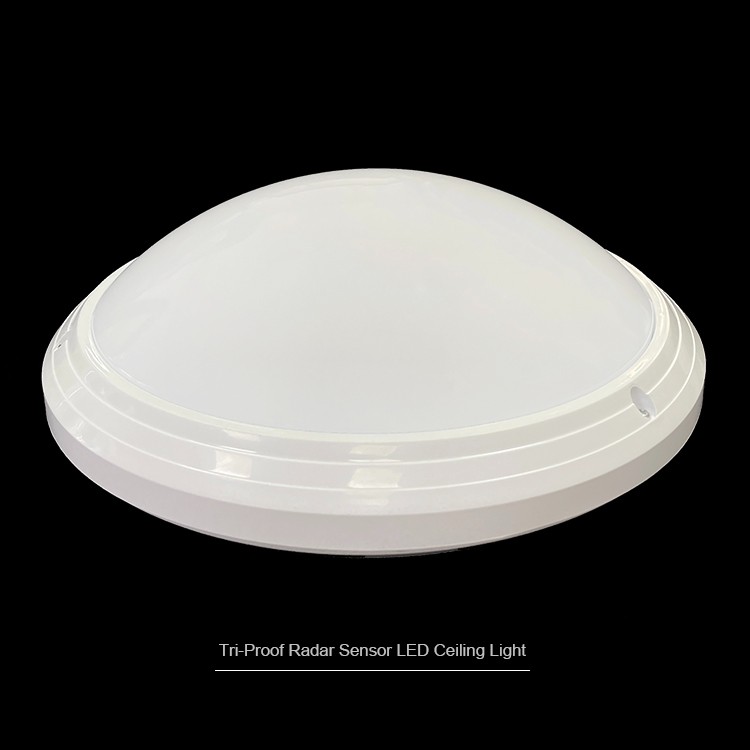

IP54 Auto On Off Radar Sensor LED Surface Ceiling Lamp with Built-in Emergency Rechargeable battery AM-XD330RD18YJ

At day time, With sufficient ambient brightness, The ceiling light will keep off and not be triggered by any motion.
At night time, If there is no sufficient ambient brightness, the light will turns on when motion activated, and turns off automatically after 15-20s.
When you switch off the power or power failure, the ceiling light will switch to emergency mode.

IP54 Auto On Off Radar Sensor LED Surface Ceiling Lamp with Built-in Emergency Rechargeable battery AM-XD330RD18YJ

An IP54 emergency LED ceiling light with a radar motion sensor is a specialized lighting fixture designed for emergency situations and areas that designed for emergency situations and areas that require heightened safety measures.

Product Features:

  • IP54 rating indicates that the light is protected against dust and splashes of water from any direction, making it suitable for indoor or outdoor installation in environments where moisture or debris may be present. This makes it ideal for locations such as warehouses, parking garages, stairwells, and industrial facilities.

  • The emergency LED ceiling light typically includes built-in batteries that provide backup power in the event of a power outage. This ensures that the light remains functional during critical situations, such as fire emergencies or sudden loss of electricity.


Data sheet for Ultra slim led ceiling light with microwave sensor
Item NoAM-XD280RDYJ12AM-XD330RDYJ18
Voltage185-265Vac185-265Vac

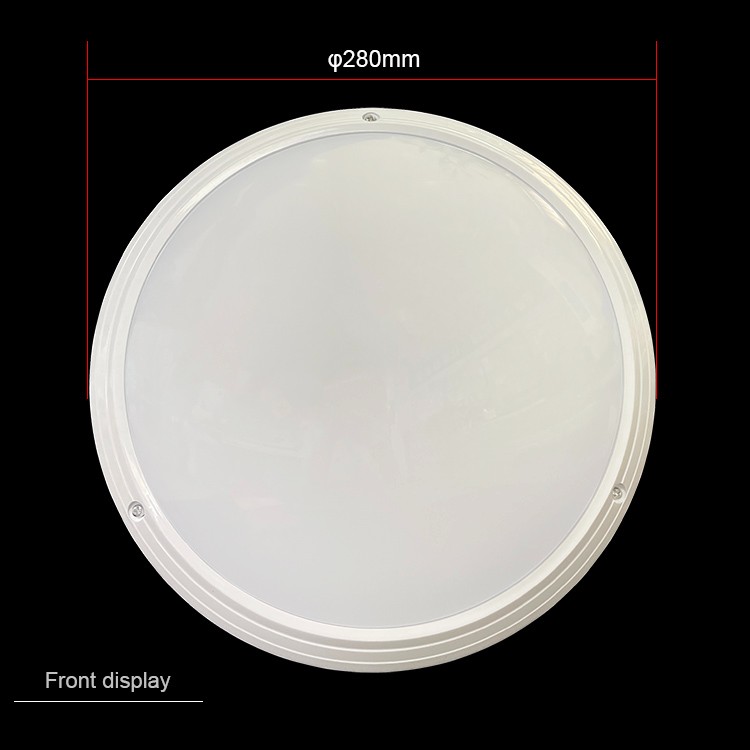

SizeDia 280*95mmDia 330*95mm
Power consumption
<0.5W<0.5W
Rated power12W18W
LED Qty30pcs*SMD573036pcs*SMD5730

Lumen efficiency

>70lm/W

>70lm/W
CCT3000K/4000K/6000K3000K/4000K/6000K

Power factor

0.5

0.5

Beam angle150 degree150 degree
CRIRa 80Ra 80
Sensor Data
Sensor principleHF Microwave
Operation frequency

3.3GHz

Transmission power<0.2mW
Detection range8m*6m ( diamater*H)
Hold time15±5s ( 30s/45s/60s/2mins optional )

Sensor mode

(2 Steps )

Option 1: Full to Off (100%-off)

Option 2: Full to Dim (100%-20%)

Emergency power3.5W
Lithium battery3.7V 2000mAh, 18650 lithium battery (to be customized to 3000mAh)
Fully charge time<24 hoursConnect AC power and turn on the lamp (sensor mode), it will charge the battery automatically)
ApplicationCarpark, parking lot, basement, corridor, warehouse, storage room.



Customer Questions & Answers



  • Sensor type A:   ON/OFF Mode (100%-0%)

          When detect movement lighting, Light turn on at 100% brightness,

          No movement, stand by status light off (0%)

  • Sensor type B:  Full/Dim Mode (100%~20%)

          When detect movement lighting, Light turn on at 100% Brightness,

          No movement, stand by status lighting turn to 20% (2-3 watt)

  • Delay time: 15 seconds

           Mean: the last movement past, light still keep on lighting 15 seconds

  • Quality control:

           We have three sensor test rooms, make sure each lamps passed stricly sensor function test and aging test  before shipping.

  • Warranty : 2 years

  •  Application:

          Ideal for domestic applications such as Corridor, cabinets, hallway,  Stairways, attics, Basement, Warehouse, hallyway, Closet, Depot, Bathroom, Toilet, Childern Room.etc.

          Business applications include shops, offices, warehouses, storerooms, workshops, cable ways, substations and archives
