E27 4W 7W Automatic Radar Motion Sensor LED Bulb for corridor porch staircase AM-QP
Smart lighting solution for corridor, staircase, porch. warehouse.
Easy installation, just replace existing bulb.
3 optional sensor mode:
--On to Off all day along
--On to Off at night (Ambient Lux <15lux)
--On to Dim Mode (100%-20%)
E27 B22 4W 7W Automatic Radar Motion Sensor LED Bulb for corridor porch staircase AM-QP

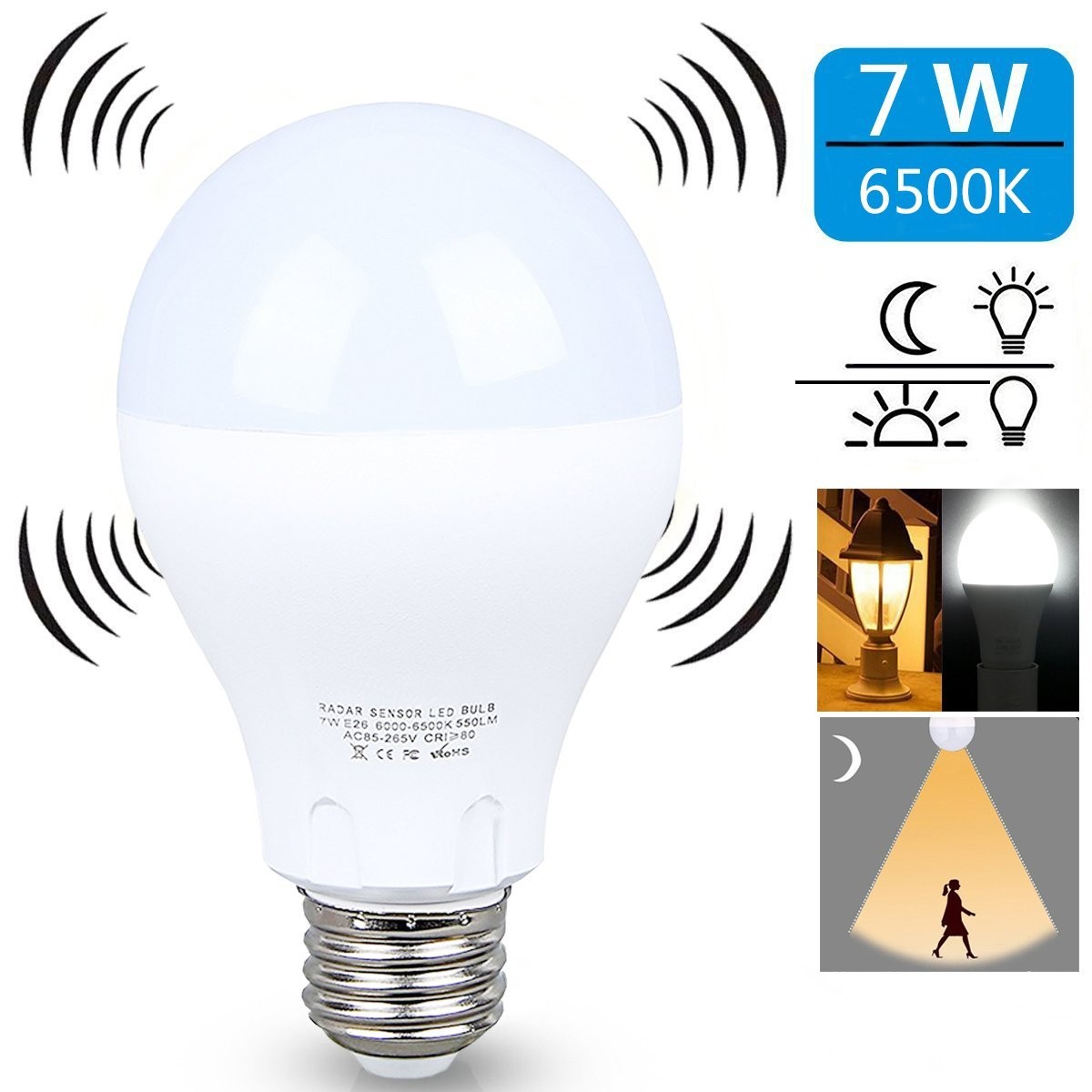

The E27 B22 Automatic Radar Motion Sensor LED Bulb is designed to provide efficient and convenient lighting solutions for corridors, porches, and staircases. With its built-in radar motion sensor, this LED bulb automatically detects movement in its vicinity and activates the light accordingly. This not only enhances energy efficiency by ensuring that the light is only on when needed, but also offers added security and convenience in areas such as corridors and staircases.
Featuring two different wattage options - 4W, 7W, this LED bulb allows you to choose the appropriate level of brightness based on your specific lighting needs. The E27 base makes it compatible with a wide range of lighting fixtures, making it easy to integrate into your existing setup.
Product Features:

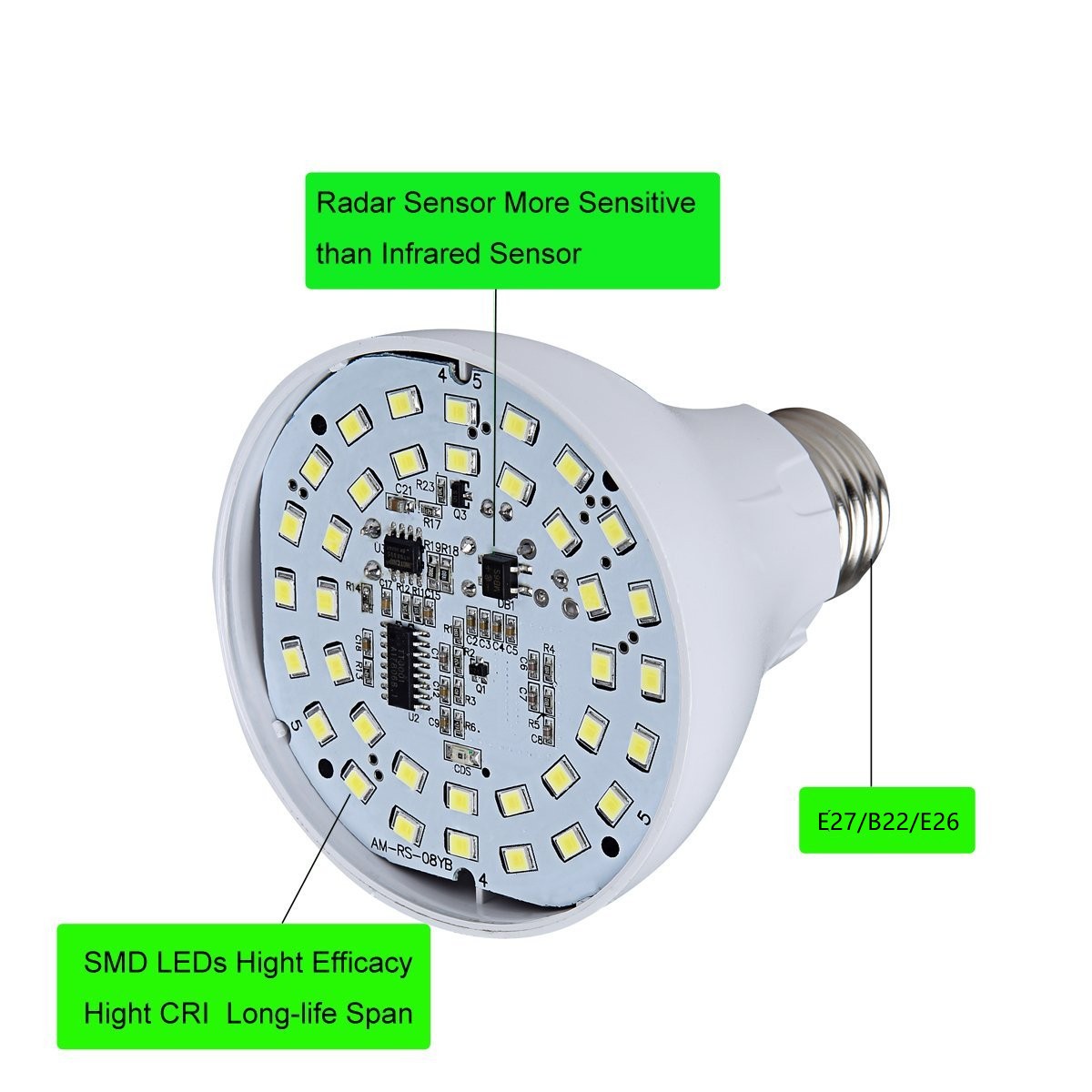

Built-in radar motion sensor for automatic activation
Patented Housing Design
Enhances safety and security in corridors, porches, and staircases
Available in 4W, 7W, options
E27/B22/E26 base for easy installation
Suitable for a variety of lighting fixtures
| Data sheet for Smart Microwave Radar Sensor LED Bulb | ||
|---|---|---|
| Item No | AM-QP-04 | AM-QP-07 |
| Voltage | 85-265Vac | 85-265Vac |

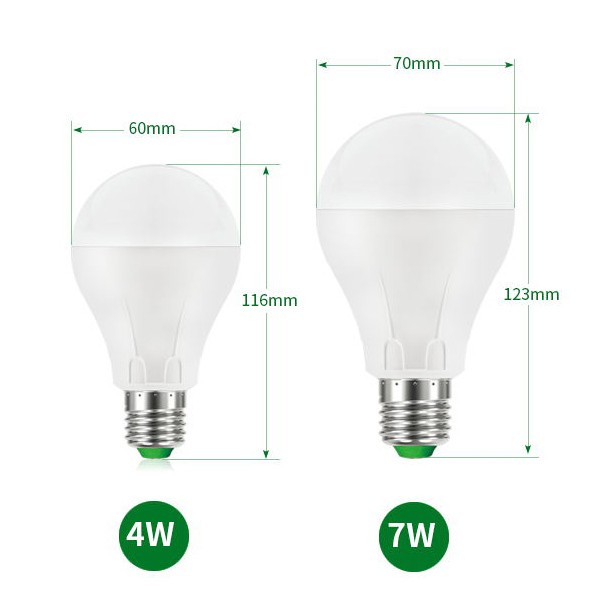

| Size | A60*110mm | A70*125mm |
| Power consumption | <0.5W | <0.5W |
| Rated power | 4W | 7W |
| LED Qty | 18pcs*SMD2835 | 36pcs*SMD2835 |
Lumen efficiency | >85lm/W (Default) | |
| CCT | 3000K/4000K/6000K | |
Power factor | 0.5 | |
| Beam angle | 120 degree | |
| CRI | Ra 80 | |
| Sensor Data | ||
| Sensor principle | HF Microwave | |
| Operation frequency | 3.3GHz (5.8GHz available) | |
| Transmission power | <0.2mW | |

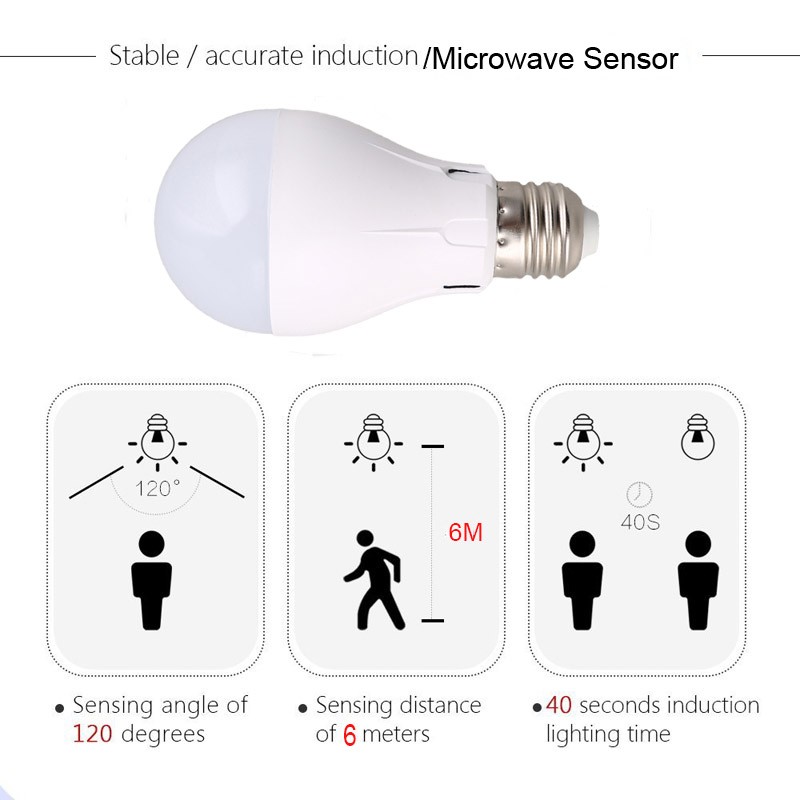

| Detection range | 8m*6m ( diamater*H) | |
| Hold time | 15±5s ( 30s/45s/60s/2mins preset by factory ) | |
Sensor mode | Full to Off (100%-off) | |
| Daylight Sensor | 10-15lux (ambient light level) | |
| Application | Carpark, parking lot, basement, corridor, warehouse, storage room. | |
Customer Questions & Answers
Sensor type : ON/OFF Mode (100%-0%)
When detect movement lighting, Light turn on at 100% brightness,
No movement, stand by status light off (0%)
Daylight Sensor: 10-15 LUX
If ambient light level is Higher than 10-15 Lux, the Bulb keeps off (even motion detected)
If ambient light level is lower than 10-15 Lux, the Bulb switches on/off with motion detected/motionless.
Delay time: 15 seconds
Mean: the last movement past, light still keep on lighting 15 seconds
Quality control:
We have three sensor test rooms, make sure each lamps passed stricly sensor function test and aging test before shipping.
Warranty : 2 years
Application:
The Motion Sensor LED Light Bulb Ideal for domestic applications such as Corridor, cabinets, hallway, Stairways, attics, Basement, Warehouse, hallyway, Closet, Depot, Bathroom, Toilet, Childern Room.etc.
Business applications include shops, offices, warehouses, storerooms, workshops, cable ways, substations and archives
How we test the sensor function in Factory?
