95mm Width Radar Sensor LED Batten Linear Light with Integrated Microwave Sensor AM-CK1295YRD

Smart lighting solution
Enegy-saving radar technology
Over a Decade of Expertise in Radar Sensor LED Tube Lights:
Provide customizable solutions for a wide range of applications.

95mm Width Radar Sensor LED Batten Linear Light with Integrated Microwave Sensor AM-CK1295YRD

The motion sensor LED batten typically consists of a slim, elongated design with integrated LED chips, diffusers, and a motion sensor module. It can be mounted on walls or ceilings, making it suitable for use in corridors, garages, warehouses, staircases, closets, and other areas where constant lighting may not be necessary. The motion sensor module is equipped with microwave sensors that can detect movement within a specific range.

Key Features:

  • Energy Efficiency: LED technology ensures that the batten consumes significantly less energy compared to traditional fluorescent or incandescent lights, resulting in reduced electricity bills and lower environmental impact.

  • Motion Detection: The built-in motion sensor activates the LED lights when it senses movement within its coverage area, making it convenient and efficient for areas with intermittent foot traffic.

  • Auto On/Off (On/Standby): The motion sensor LED batten automatically turns on when motion is detected and turns off ( or dim power) after a certain period of inactivity, saving energy and enhancing security.

  1. Adjustable Settings: Some models come with adjustable settings that allow users to customize the sensitivity, detection range, and time delay for the motion sensor, catering to specific lighting needs.

  • Long Lifespan: LED technology provides a long operational life, resulting in minimal maintenance and replacement costs over time.

  • Even Lighting: The LED batten design ensures uniform light distribution, minimizing shadows and dark spots in the illuminated area.

  • Durability: Motion sensor LED battens are typically built with sturdy materials that make them resistant to impact, vibrations, and weather conditions, making them suitable for both indoor and outdoor use.

  • Instant Illumination: LEDs provide instant full brightness when activated, unlike some traditional light sources that may require time to reach their maximum output.

  1. Eco-Friendly: The low energy consumption and lack of hazardous materials (such as mercury) in LEDs make them environmentally friendly lighting options.

Overall, The Microwave motion sensor LED batten linear light combine energy efficiency, convenience, and longevity, making them an excellent choice for various applications, especially in areas where illumination is only needed when people are present.


Data sheet for Microwave sensor LED Batten Linear
Item NoAM-CK1295RD
Voltage185-265Vac
Size4ft/120cm
Power consumption
<0.5W
Rated power18W/24W/36W

Dim Power(20%standby)

3W/6W
LED Qty144pcs*SMD2835 / 288pcs *SMD2835

Lumen efficiency

>70lm/W

CCT3000K/4000K/6000K

Power factor

0.5 / 0.9

Beam angle120 degree
CRIRa 80
ColorWhite or Black
MaterialAluminum & PMMA
Sensor Data
Sensor principleHF Microwave
Operation frequency

3.3GHz or 5.8GHz

Transmission power<0.2mW
Detection range8m*6m ( diamater*H)
Hold time15±5s ( 30s/45s/60s/2mins optional )

Sensor mode

(2 Steps)

Option 1: Full to Off (100%-off)

Option 2: Full to Dim (100%-20%)

ApplicationCarpark, parking lot, basement, corridor, warehouse, storage room.

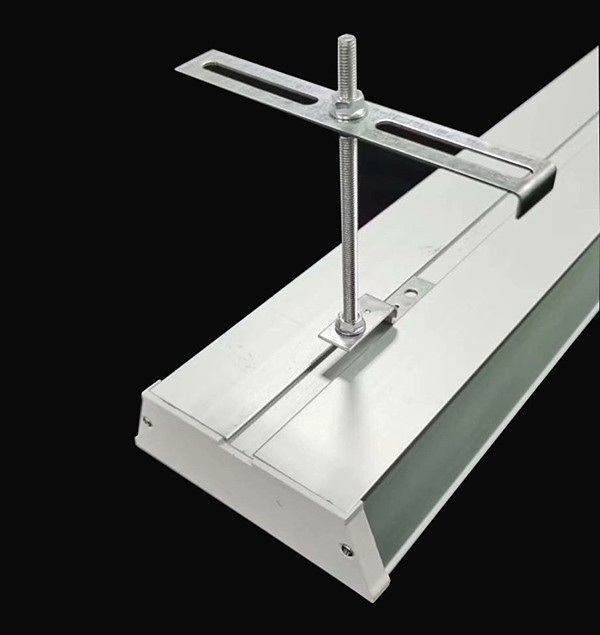

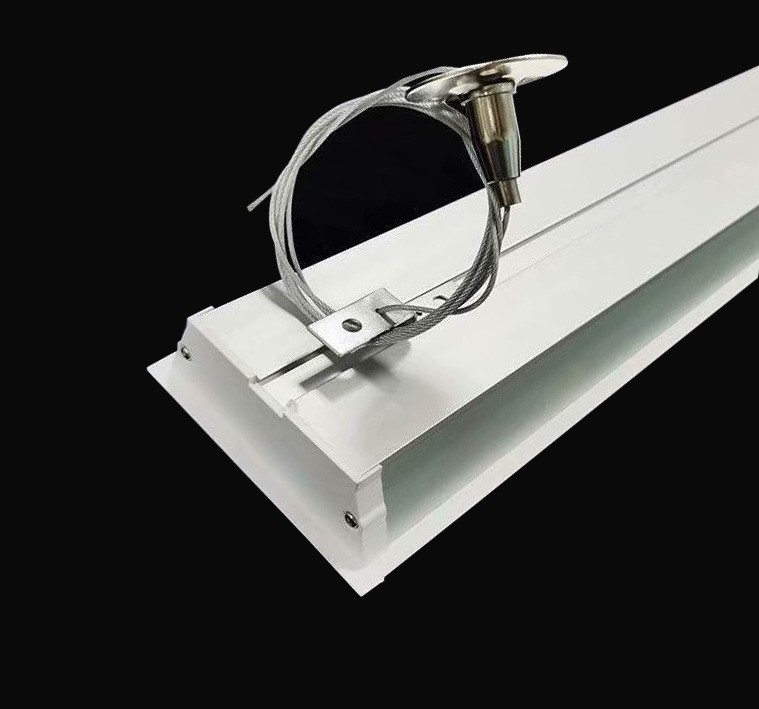

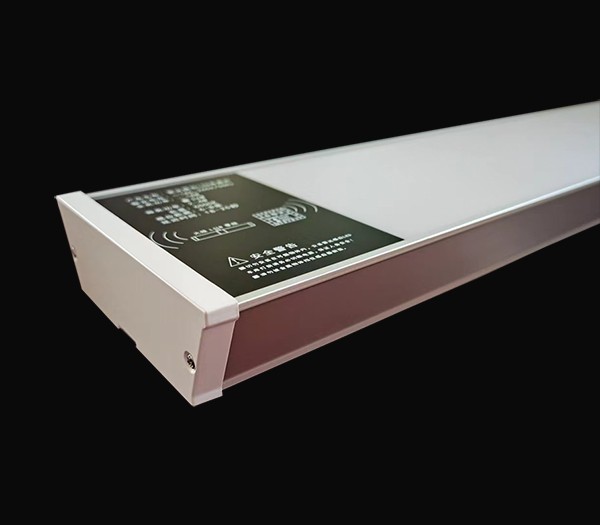

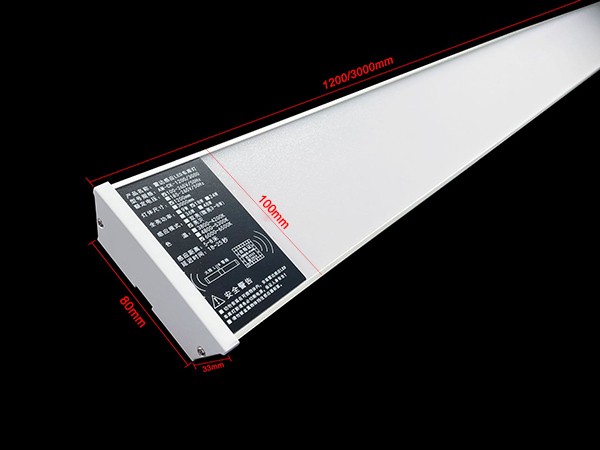

radar sensor led batten linear light.jpgradar sensor led batten.jpg95mm led batten light.jpg

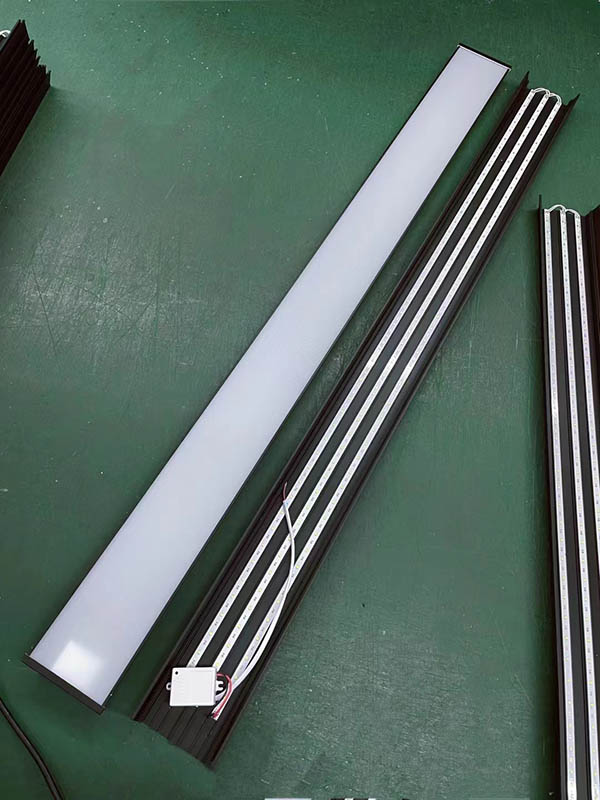

LED Batten linear light 65mm.jpg


led batten application.jpg

Customer Questions & Answers



  • Sensor type A:   ON/OFF Mode (100%-0%)

          When detect movement lighting, Light turn on at 100% brightness,

          No movement, stand by status light off (0%)

  • Sensor type B:  Full/Dim Mode (100%~20%)

          When detect movement lighting, Light turn on at 100% Brightness,

          No movement, stand by status lighting turn to 20% (2-3 watt)

  • Delay time: 15 seconds

           Mean: the last movement past, light still keep on lighting 15 seconds

  • Quality control:

           We have three sensor test rooms, make sure each lamps passed stricly sensor function test and aging test  before shipping.

  • Warranty : 2 years

  •  Application:

          Ideal for domestic applications such as Corridor, cabinets, hallway,  Stairways, attics, Basement, Warehouse, hallyway, Closet, Depot, Bathroom, Toilet, Childern Room.etc.

          Business applications include shops, offices, warehouses, storerooms, workshops, cable ways, substations and archives


   How we test the sensor function in Factory?
