Wholesale Factory Direct 2FT 60MM Microwave Motion Sensor LED T8 Tube Light AM-8D605YRD

an advanced energy-saving lighting solution designed for smart motion detection and automatic illumination control. Equipped with a high-sensitivity 5.8GHz microwave motion sensor, this LED tube light automatically turns on when motion is detected and dims or switches off when no movement is present, significantly reducing energy consumption.

Wholesale Factory Direct 2FT 60MM Microwave Motion Sensor LED T8 Tube Light AM-8D605YRD

The 2FT 60MM Microwave Motion Sensor LED T8 Tube Light (AM-8D605YRD) is a smart, energy-efficient lighting solution designed for areas requiring automatic motion detection and energy savings. Featuring an advanced 5.8GHz microwave motion sensor, this LED tube light detects movement within its range and automatically turns on, then dims or switches off when no activity is detected.


Built with high-quality LED chips, this T8 tube light delivers bright and uniform illumination while consuming significantly less energy than traditional fluorescent tubes. The intelligent motion sensor control makes it perfect for parking garages, hallways, stairwells, warehouses, and offices, reducing electricity costs and improving safety and convenience.


With a sturdy 60MM aluminum housing, this LED tube offers enhanced heat dissipation and durability, ensuring long-term performance. It is easy to install, fully compatible with standard T8 fixtures, and provides a maintenance-free lighting solution for both commercial and industrial applications.


Product Features:

  • Microwave Motion Sensor – 5.8GHz high-sensitivity sensor for automatic on/off control

  • Energy-Saving LED Technology – Reduces power consumption while providing high brightness

  • 2FT Length, 60MM Diameter – Compact design for versatile applications

  • Durable & Long-Lasting – Premium materials for reliability and efficiency

  • Easy Installation – Plug-and-play compatibility with standard T8 fixtures

  • Ideal for wholesalers, distributors, and importers, this smart sensor LED tube light is a cost-effective solution for upgrading lighting in commercial, industrial, and residential spaces.


Data sheet for Microwave sensor led tube
Item NoAM-8D605YRDAM-8D1205YRDAM-8D1505YRD
Voltage85-265Vac85-265Vac85-265Vac
Size2ft/60cm4ft/120cm5ft/150cm
Power consumption
<0.5W<0.5W<0.5W
Rated power9W18W22W
LED Qty48pcs*SMD283596pcs*SMD2835126pcs*SMD2835

Lumen efficiency

>95lm/W

95-105lm/W

>95lm/W
CCT3000K/4000K/6000K3000K/4000K/6000K3000K/4000K/6000K

Power factor

0.5 / 0.9

0.5 / 0.9

0.5 / 0.9

Beam angle150 degree150 degree150 degree
CRIRa 80Ra 80Ra 80
Sensor Data
Sensor principleHF Microwave
Operation frequency

3.9GHz or 5.8GHz

Transmission power<0.2mW

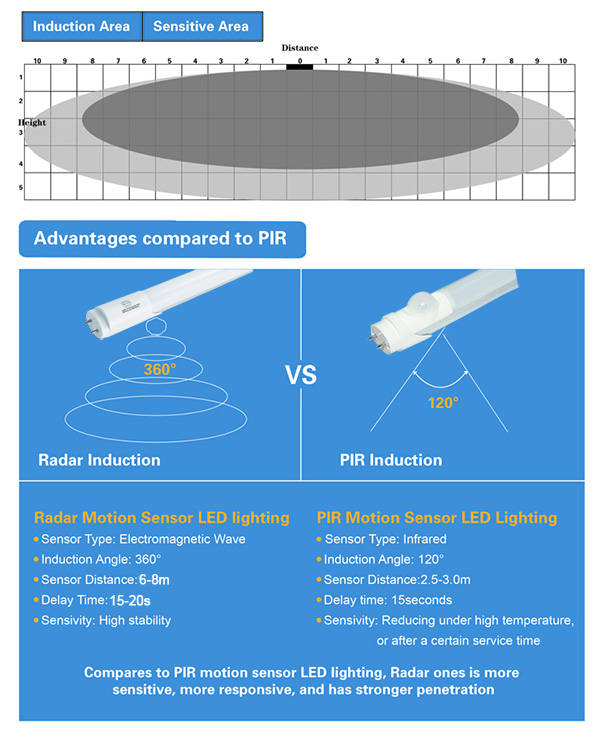

Detection range8m*6m ( diamater*H)
Hold time15±5s ( 30s/45s/60s/2mins optional )

Sensor mode

(2 Steps & 3 steps)

Option 1: Full to Off (100%-off)

Option 2: Full to Dim (100%-20%)

Option 3: Full to Dim to Off (100%-20%-off)  5.8GHz

ApplicationCarpark, parking lot, basement, corridor, warehouse, storage room.

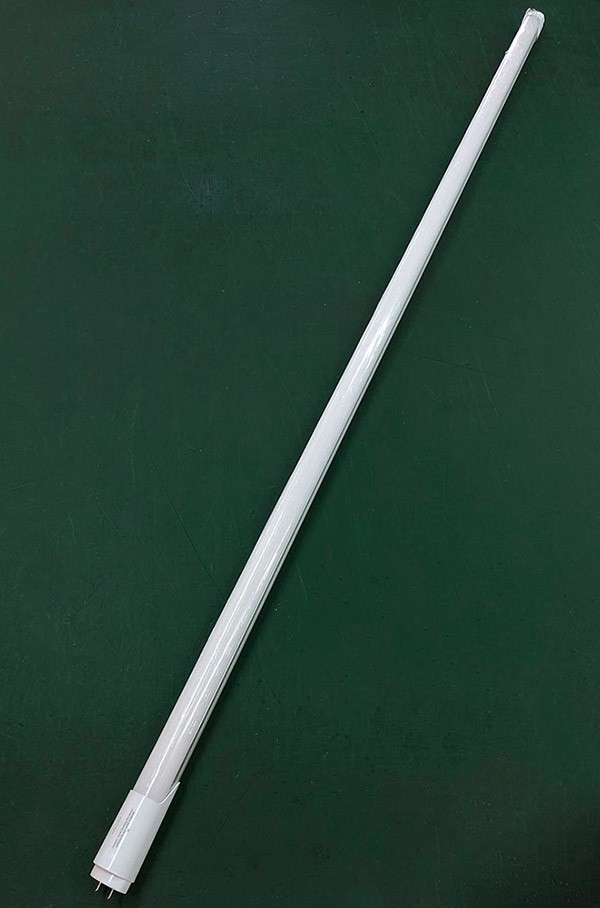

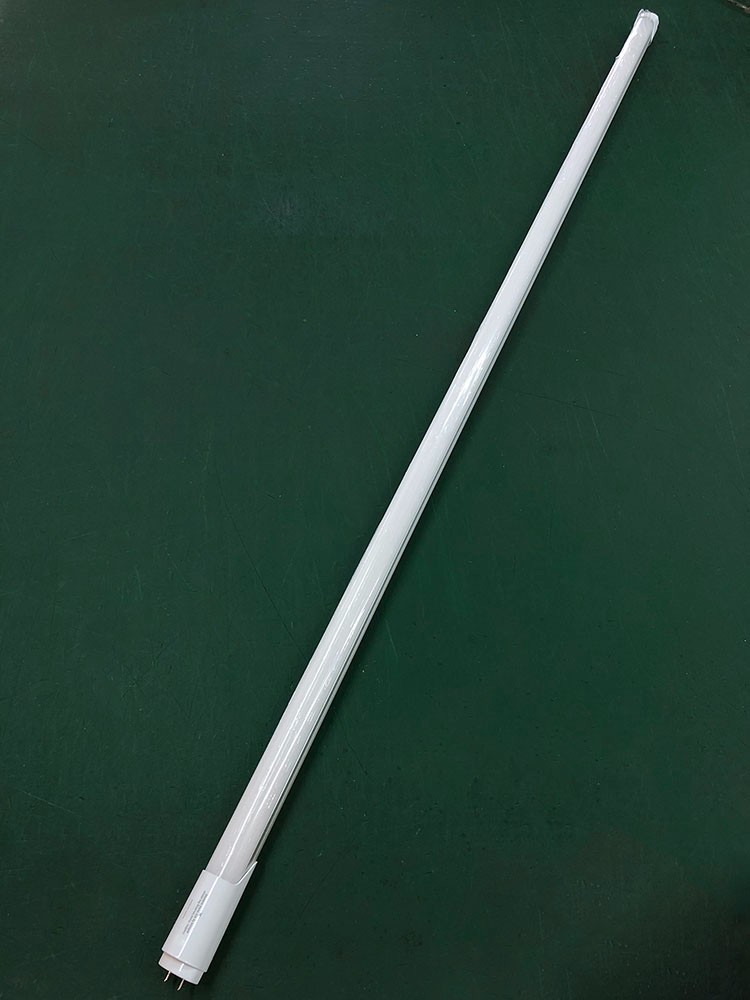

Microwave Sensor LED Tube.jpg

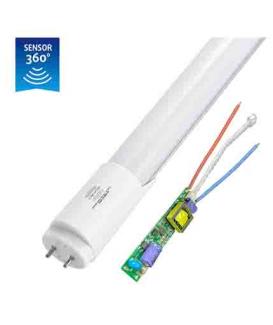

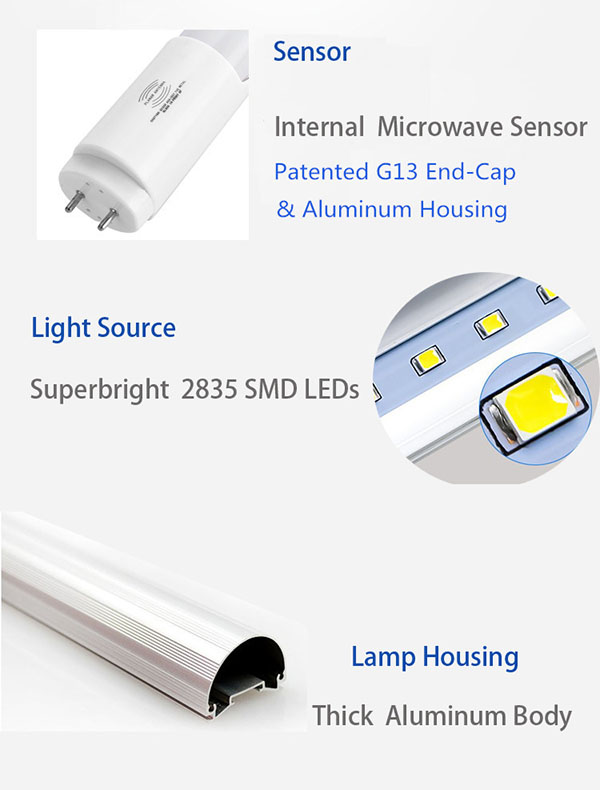

sensor led tube light (4).jpg

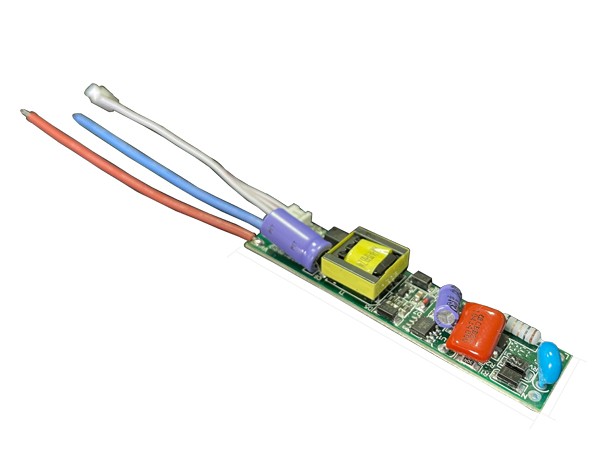

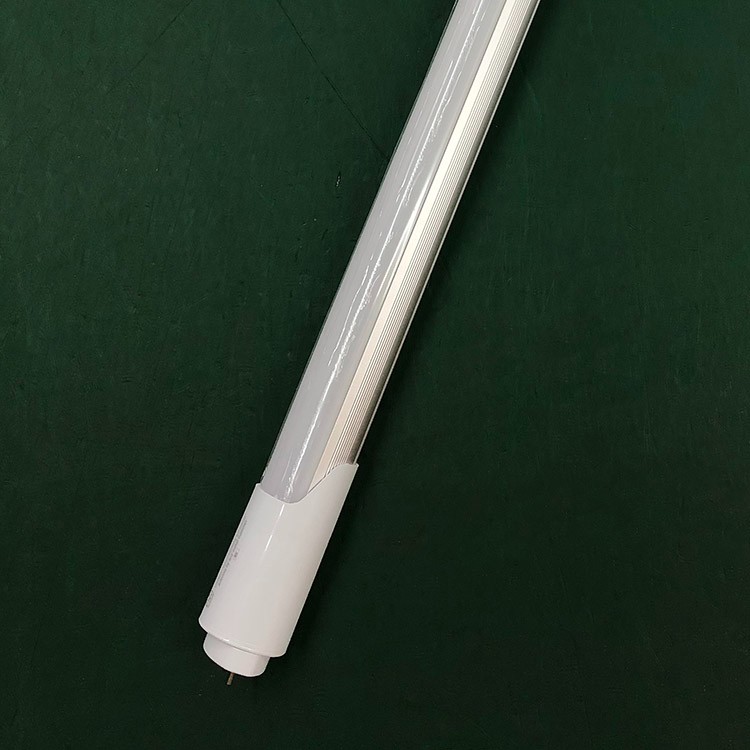

microwave Sensor tube.jpg

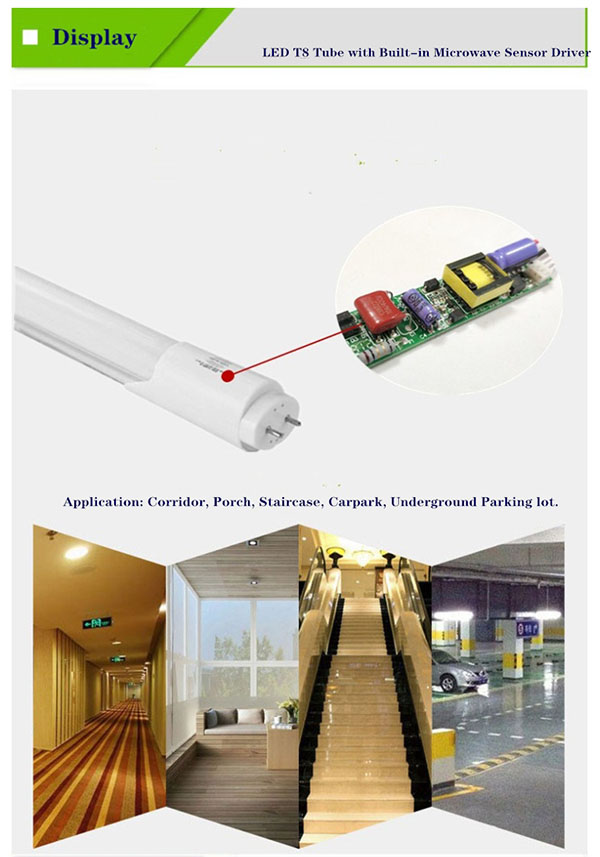

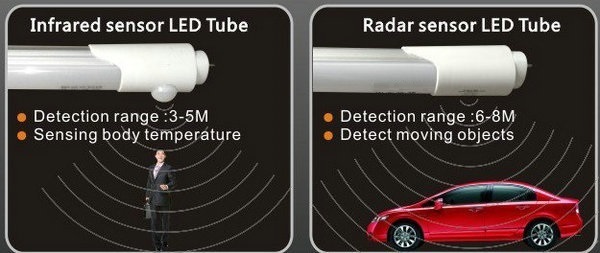

Radar Sensor LED Tubo.jpg

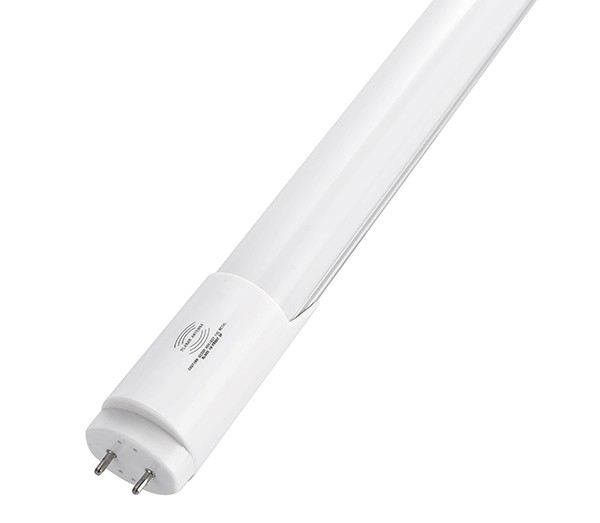

Motion sensor led tube.jpg

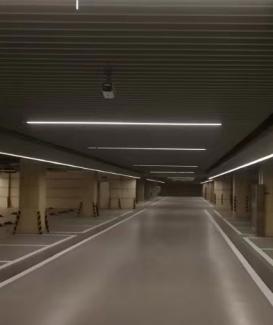

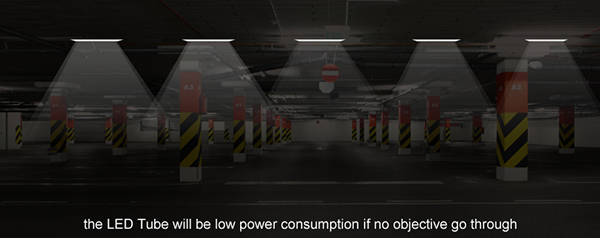

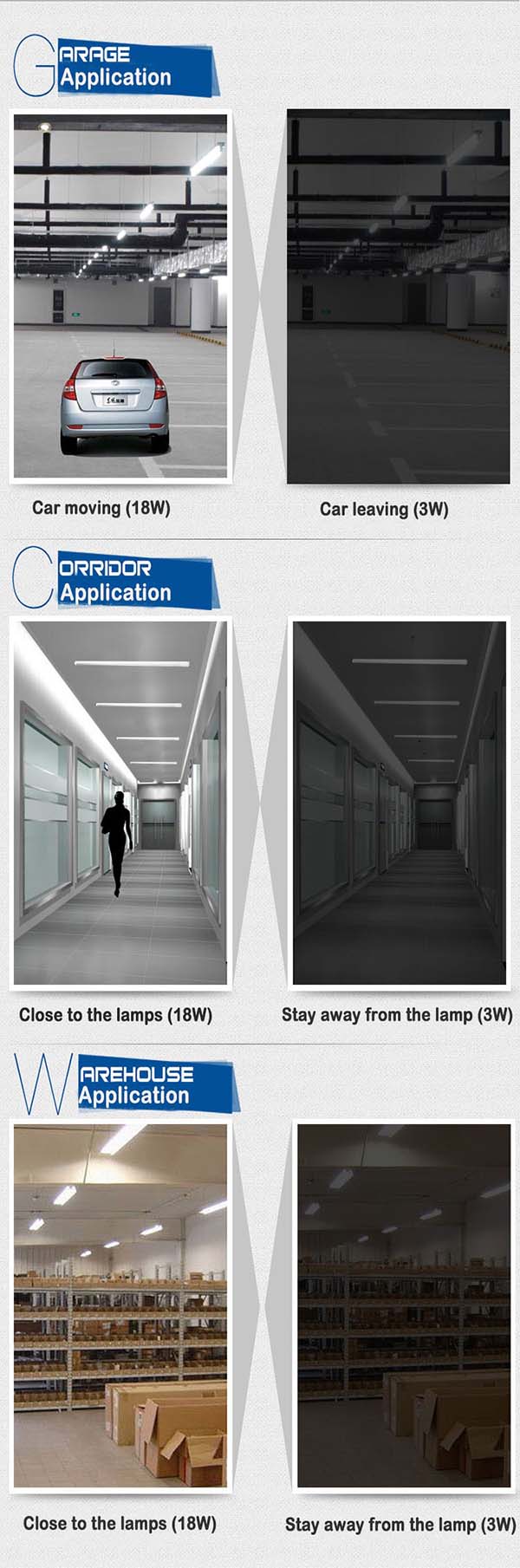

sensor tube application.jpg

Customer Questions & Answers

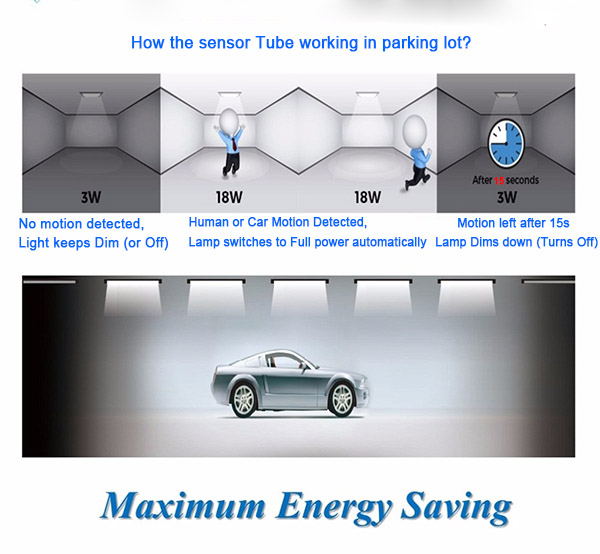

  • Sensor type A:   ON/OFF Mode (100%-0%)

          When detect movement lighting, Light turn on at 100% brightness,

          No movement, stand by status light off (0%)

  • Sensor type B:  Full/Dim Mode (100%~20%)

          When detect movement lighting, Light turn on at 100% Brightness,

          No movement, stand by status lighting turn to 20% (2-3 watt)

  • Delay time: 15 seconds

           Mean: the last movement past, light still keep on lighting 15 seconds

  • Quality control:

           We have three sensor test rooms, make sure each lamps passed stricly sensor function test and aging test  before shipping.

  • Warranty : 2 years

  •  Application:

          Ideal for domestic applications such as Corridor, cabinets, hallway,  Stairways, attics, Basement, Warehouse, hallyway, Closet, Depot, Bathroom, Toilet, Childern Room.etc.

          Business applications include shops, offices, warehouses, storerooms, workshops, cable ways, substations and archives


How we test the sensor function in Factory?
