65mm Width Radar Induction LED Batten Fitting with Integrated Microwave Sensor AM-CK1265YRD

Smart lighting solution
Enegy-saving radar technology
Over a Decade of Expertise in Radar Sensor LED Tube Lights:
Provide customizable solutions for a wide range of applications.

65mm Width Radar Induction LED Batten Fitting with Integrated Microwave Sensor

The motion sensor LED batten Fitting typically consists of a slim, elongated design with integrated LED chips, diffusers, and a motion sensor module. It can be mounted on walls or ceilings, making it suitable for use in corridors, garages, warehouses, staircases, closets, and other areas where constant lighting may not be necessary. The motion sensor module is equipped with microwave sensors that can detect movement within a specific range.

Phycical obstables such as wood, plasterboard, and plastics will not have any impact on the sensitivity of the microwave technology, Compared to infrared (PIR) sensor, microwave detection is superior in terms of reliability and accuracy.

Product Features:

  • Energy Efficiency: LED technology ensures that the batten consumes significantly less energy compared to traditional fluorescent or incandescent lights, resulting in reduced electricity bills and lower environmental impact.

  • Motion Detection: The built-in motion sensor activates the LED lights when it senses movement within its coverage area, making it convenient and efficient for areas with intermittent foot traffic.

  • Auto On/Off (On/Standby): The motion sensor LED batten automatically turns on when motion is detected and turns off ( or dim power) after a certain period of inactivity, saving energy and enhancing security.

  • Adjustable Settings: Some models come with adjustable settings that allow users to customize the sensitivity, detection range, and time delay for the motion sensor, catering to specific lighting needs.

  • Long Lifespan: LED technology provides a long operational life, resulting in minimal maintenance and replacement costs over time.

  • Even Lighting: The LED batten design ensures uniform light distribution, minimizing shadows and dark spots in the illuminated area.

  • Durability: Motion sensor LED battens are typically built with sturdy materials that make them resistant to impact, vibrations, and weather conditions, making them suitable for both indoor and outdoor use.

  • Instant Illumination: LEDs provide instant full brightness when activated, unlike some traditional light sources that may require time to reach their maximum output.

  • Eco-Friendly: The low energy consumption and lack of hazardous materials (such as mercury) in LEDs make them environmentally friendly lighting options.

Data sheet for Microwave sensor LED Batten Linear Light
Power consumption
Rated power9W18W24W36W

Dim Power


2W3W 5W
LED Qty48pcs*SMD283596pcs*SMD2835192pcs*SMD2835288pcs*SMD2835

Lumen efficiency



Power factor

0.5 / 0.9

Beam angle120 degree
CRIRa 80
Sensor Data

Sensor principleHF Microwave
Operation frequency

3.3GHz or 5.8GHz

Transmission power<0.2mW
Detection range8m*6m ( diamater*H)
Hold time15±5s ( 30s/45s/60s/2mins optional )

Sensor mode

(2 Steps)

Option 1: Full to Off (100%-off)

Option 2: Full to Dim (100%-20%)

ApplicationCarpark, parking lot, basement, corridor, warehouse, storage room.

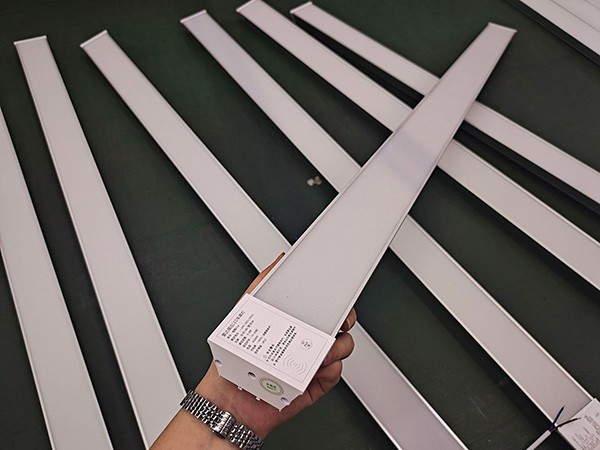

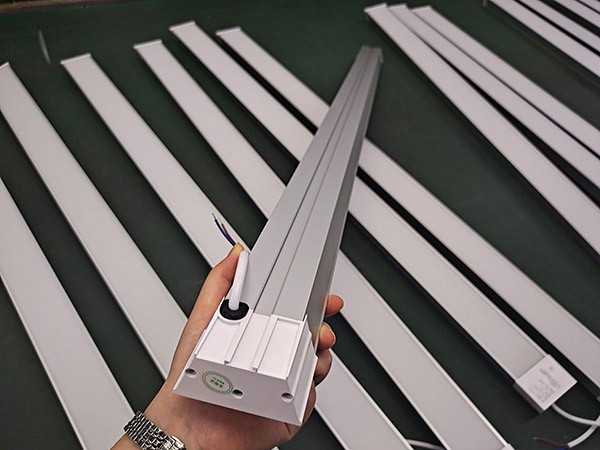

LED Batten linear light 65mm.jpg

led batten application.jpg

Customer Questions & Answers


  • Sensor type A:   ON/OFF Mode (100%-0%)

          When detect movement lighting, Light turn on at 100% brightness,

          No movement, stand by status light off (0%)

  • Sensor type B:  Full/Dim Mode (100%~20%)

          When detect movement lighting, Light turn on at 100% Brightness,

          No movement, stand by status lighting turn to 20% (2-3 watt)

  • Delay time: 15 seconds

           Mean: the last movement past, light still keep on lighting 15 seconds

  • Quality control:

           We have three sensor test rooms, make sure each lamps passed stricly sensor function test and aging test  before shipping.

  • Warranty : 2 years

  •  Application:

          Ideal for domestic applications such as Corridor, cabinets, hallway,  Stairways, attics, Basement, Warehouse, hallyway, Closet, Depot, Bathroom, Toilet, Childern Room.etc.

          Business applications include shops, offices, warehouses, storerooms, workshops, cable ways, substations and archives

How we test the sensor function in Factory?
